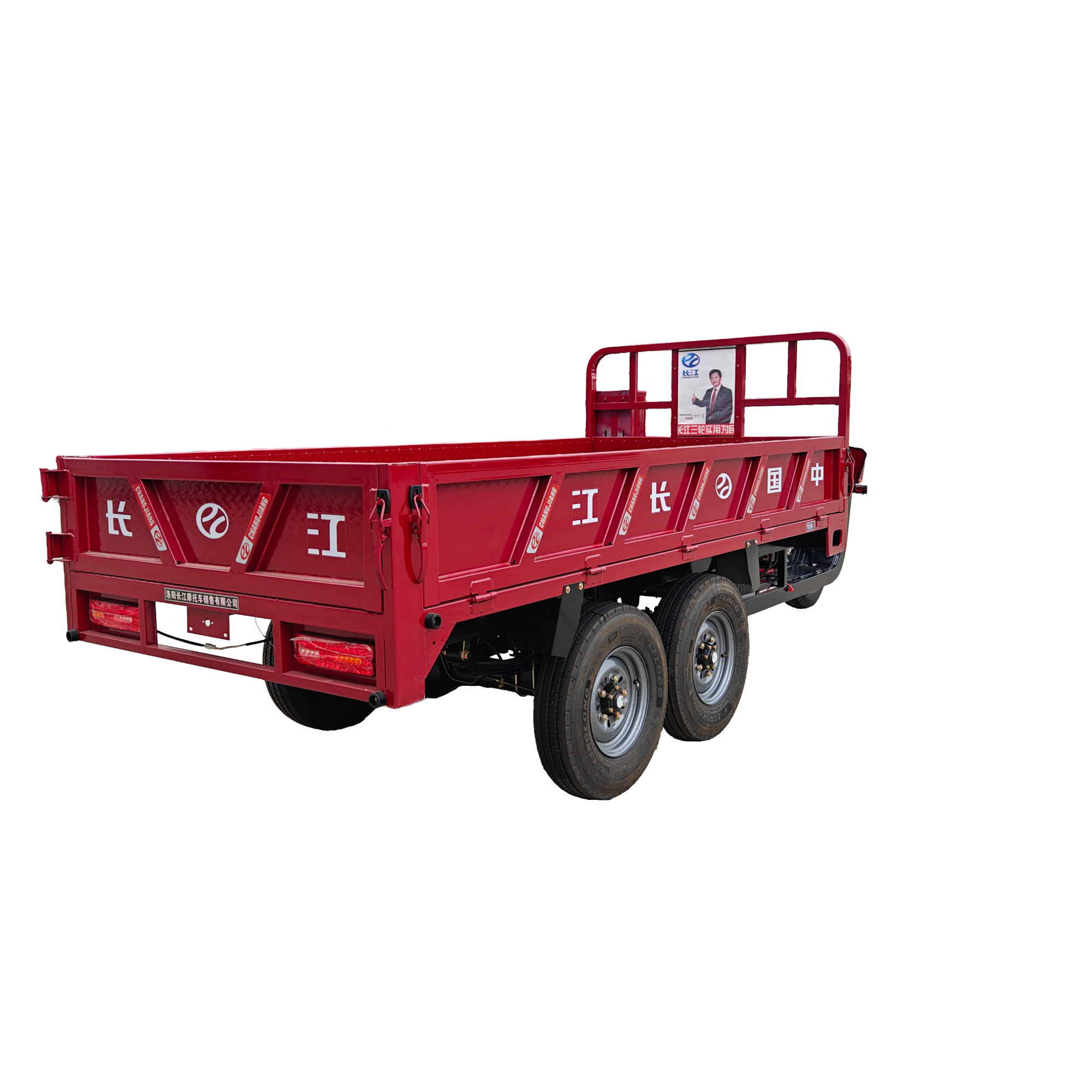

350cc Double-Bridge Rear Four-Wheel Hydraulic Dump Truck/Three-Wheel Cargo Truck

Item No.: 00448
The expansive cargo box measures L3100*W1500*H400 (mm), providing ample space for your needs, with an impressive maximum load capacity of 3500KG and a top speed of 60km/h, making it the ideal choice for efficiency and reliability in transportation.
Description
Description
Product description:
Our company, Henan Niegui Import and Export Trading Co., Ltd., proudly specializes in a diverse range of innovative and high-quality vehicles, including three-wheeled motorcycles, two-wheeled motorcycles, and side three-wheeled motorcycles. We also offer three-wheeled passenger cars, electric scooters, electric bicycles, electric tricycles, diesel tricycles, ATV quadricycles, and an extensive array of motorcycle accessories, ensuring we meet the multifaceted needs of our valued customers.
Experience the robust power of the 350CC single-cylinder four-stroke water-cooled engine, complemented by a 60mm diameter hydraulic shock absorber with an external spring for superior comfort and handling. The fully suspended double rear axle drive, paired with a 3+1 gearbox, delivers unmatched driving performance. Featuring a front swing of 5.50-13 and rear double wheel 6.00-13, this tricycle is equipped with double jack hydraulic dump functionality. The expansive cargo box measures L3100*W1500*H400 (mm), providing ample space for your needs, with an impressive maximum load capacity of 3500KG and a top speed of 60km/h, making it the ideal choice for efficiency and reliability in transportation.

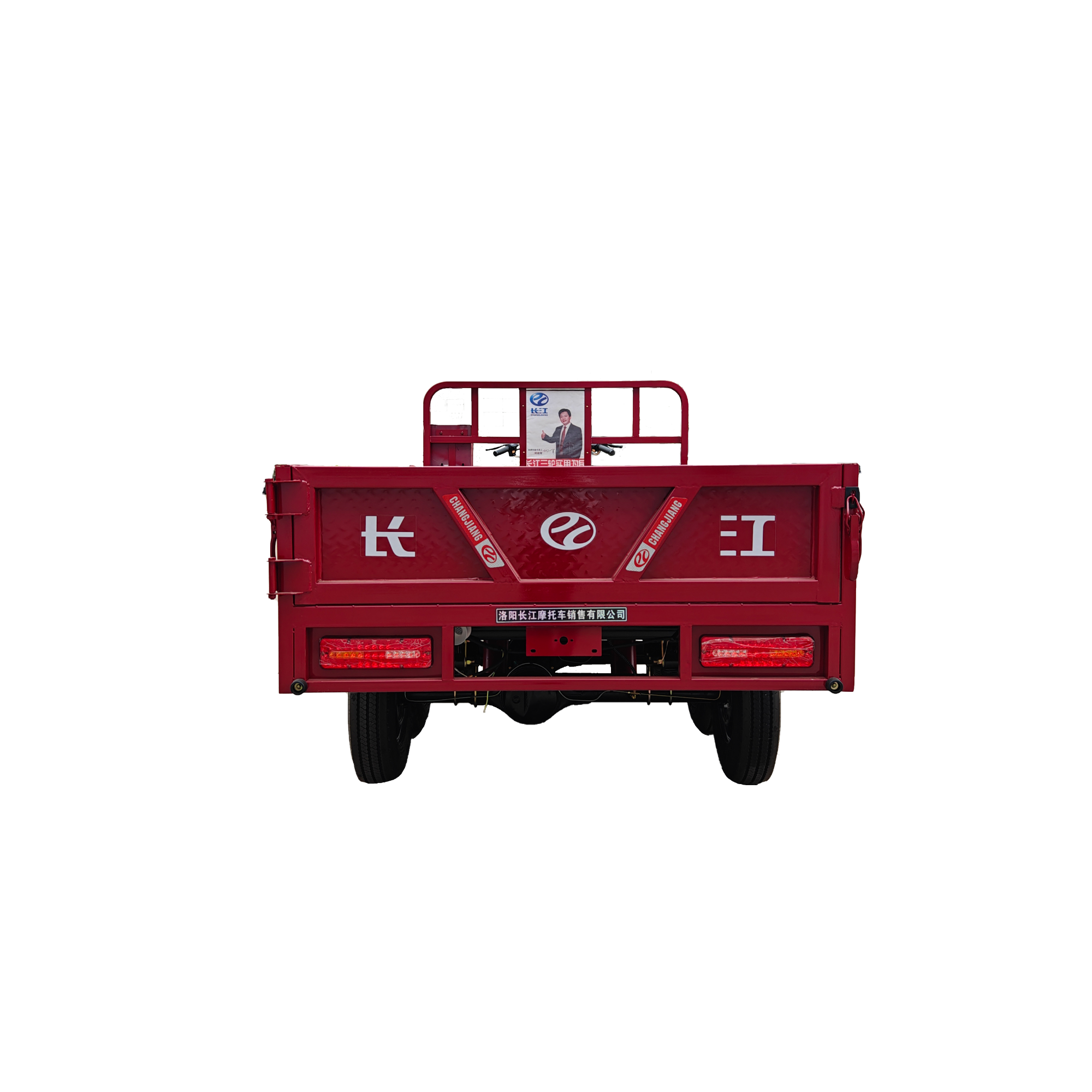

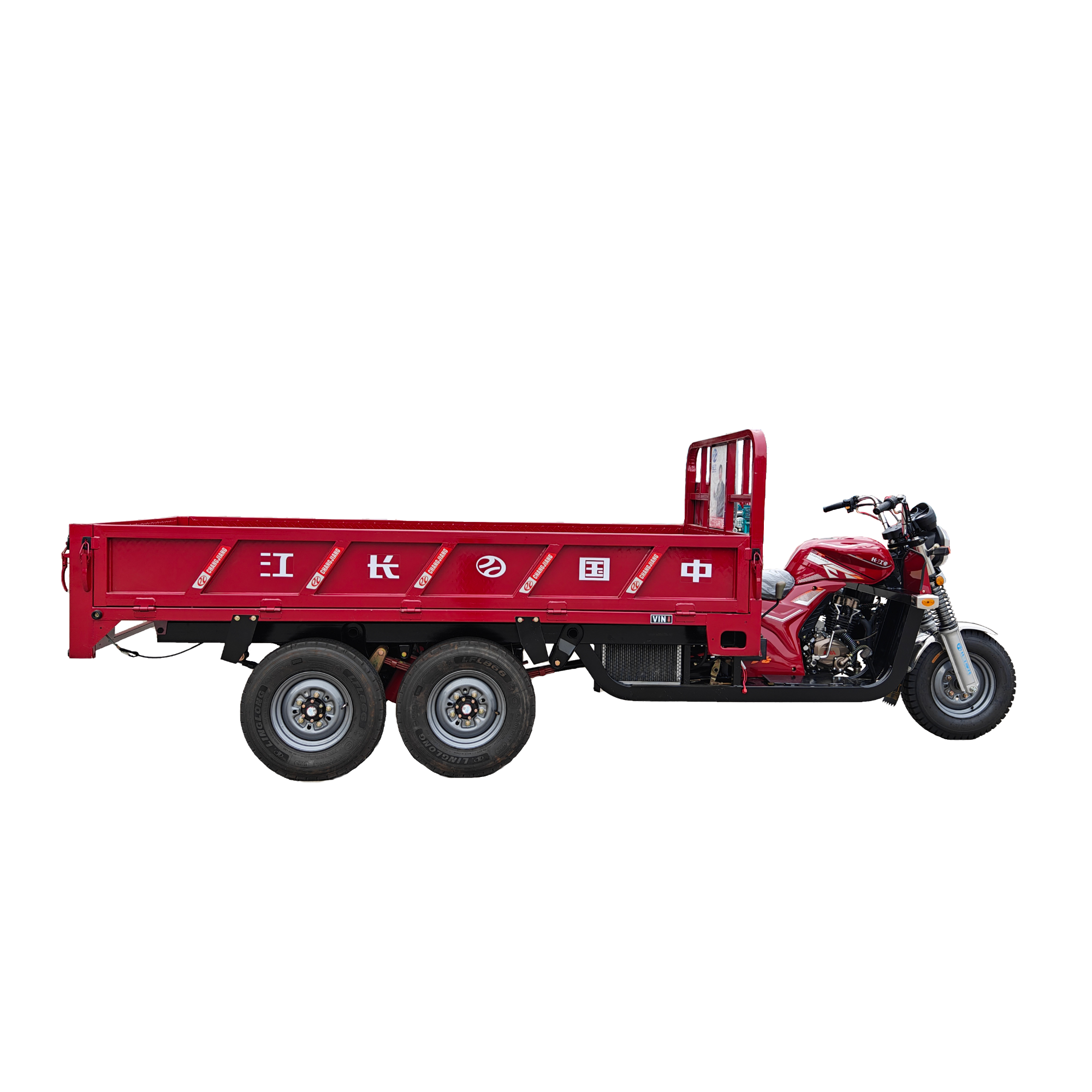

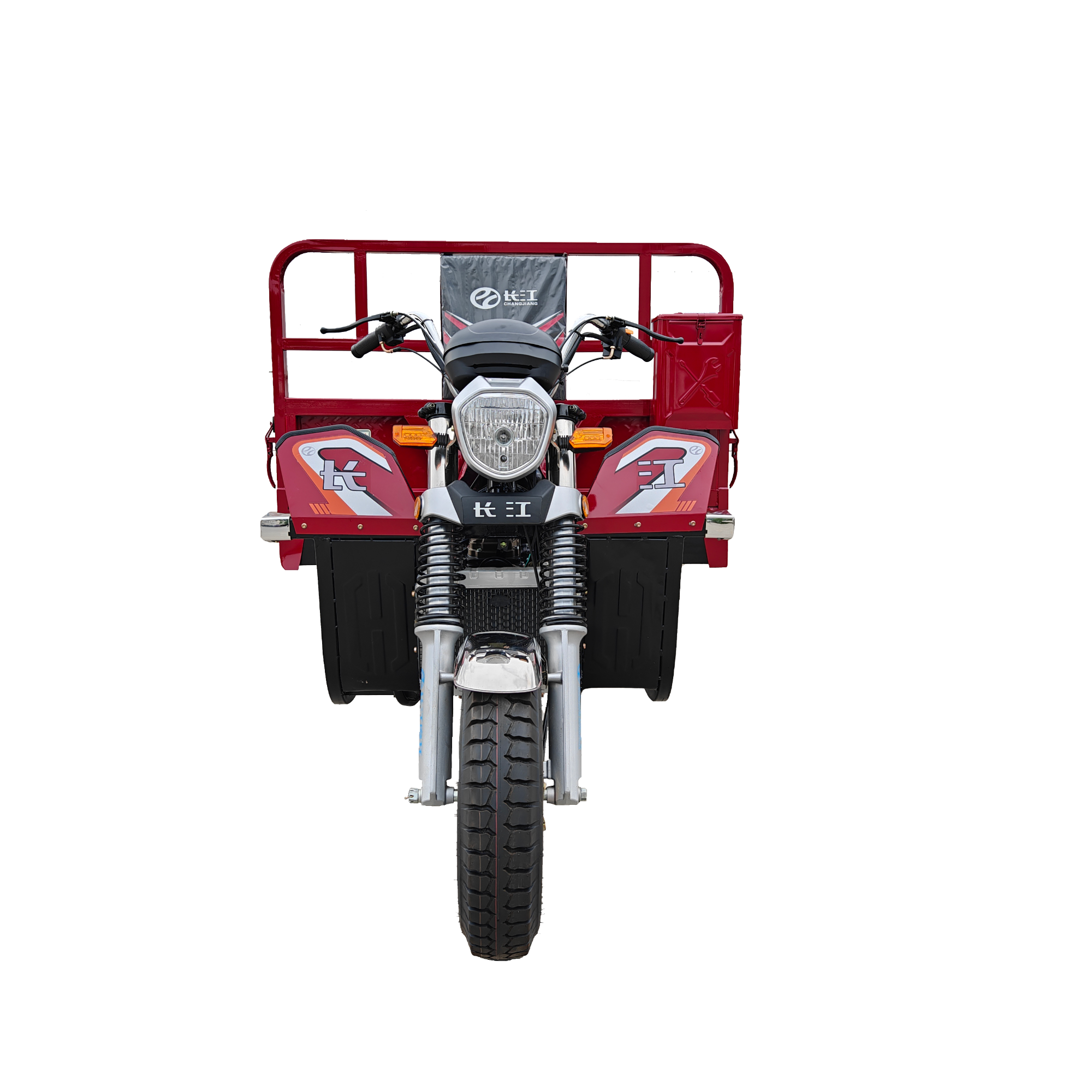

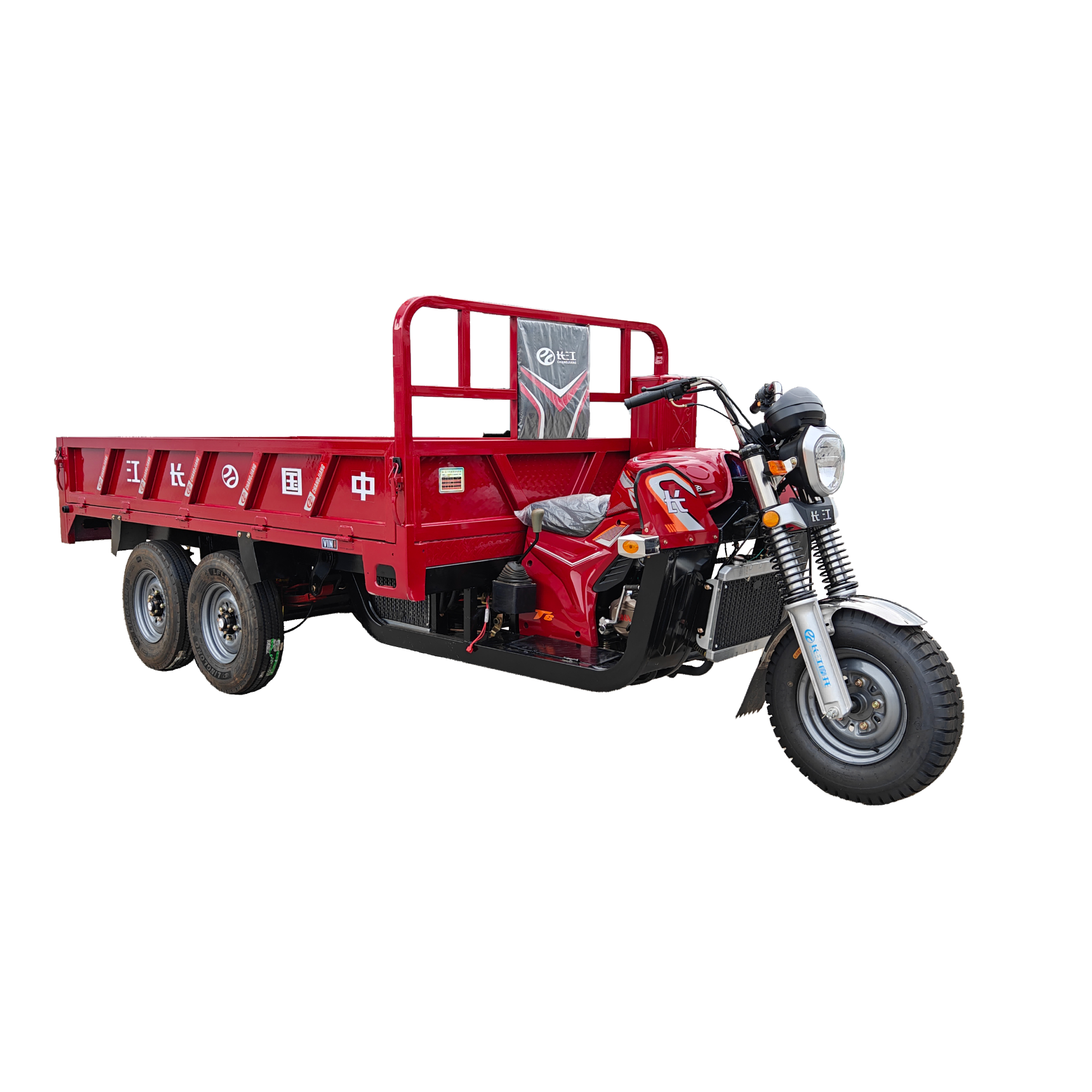

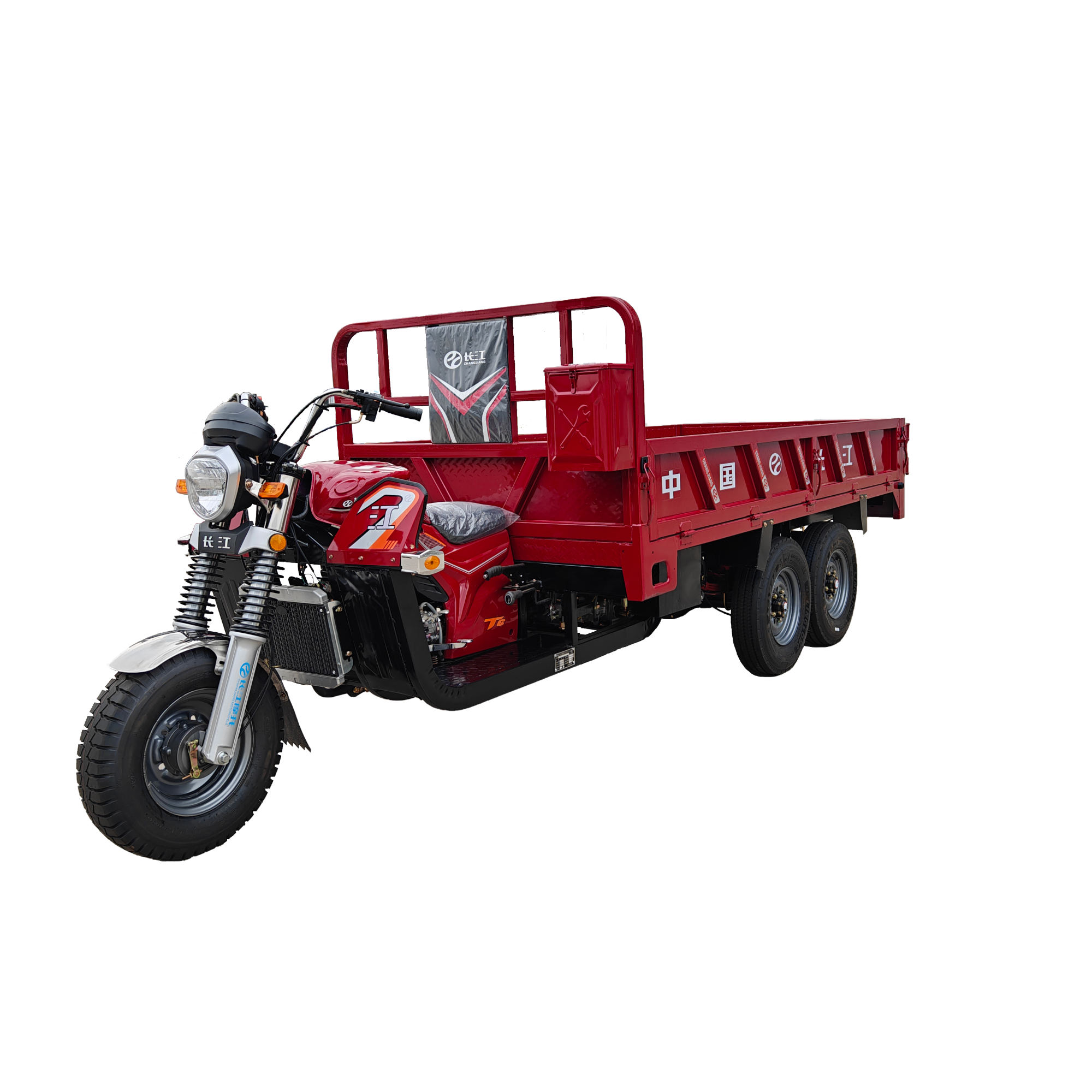

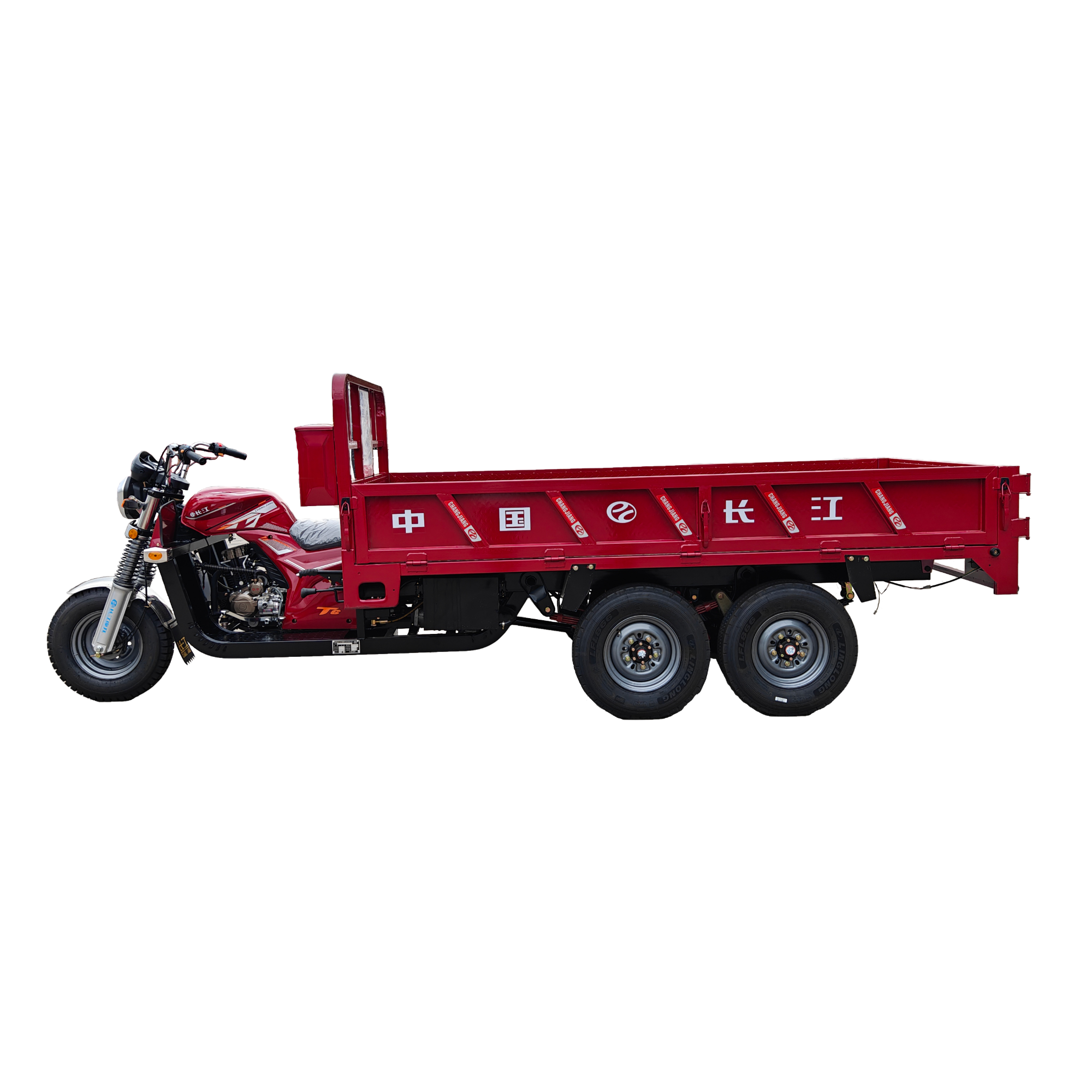

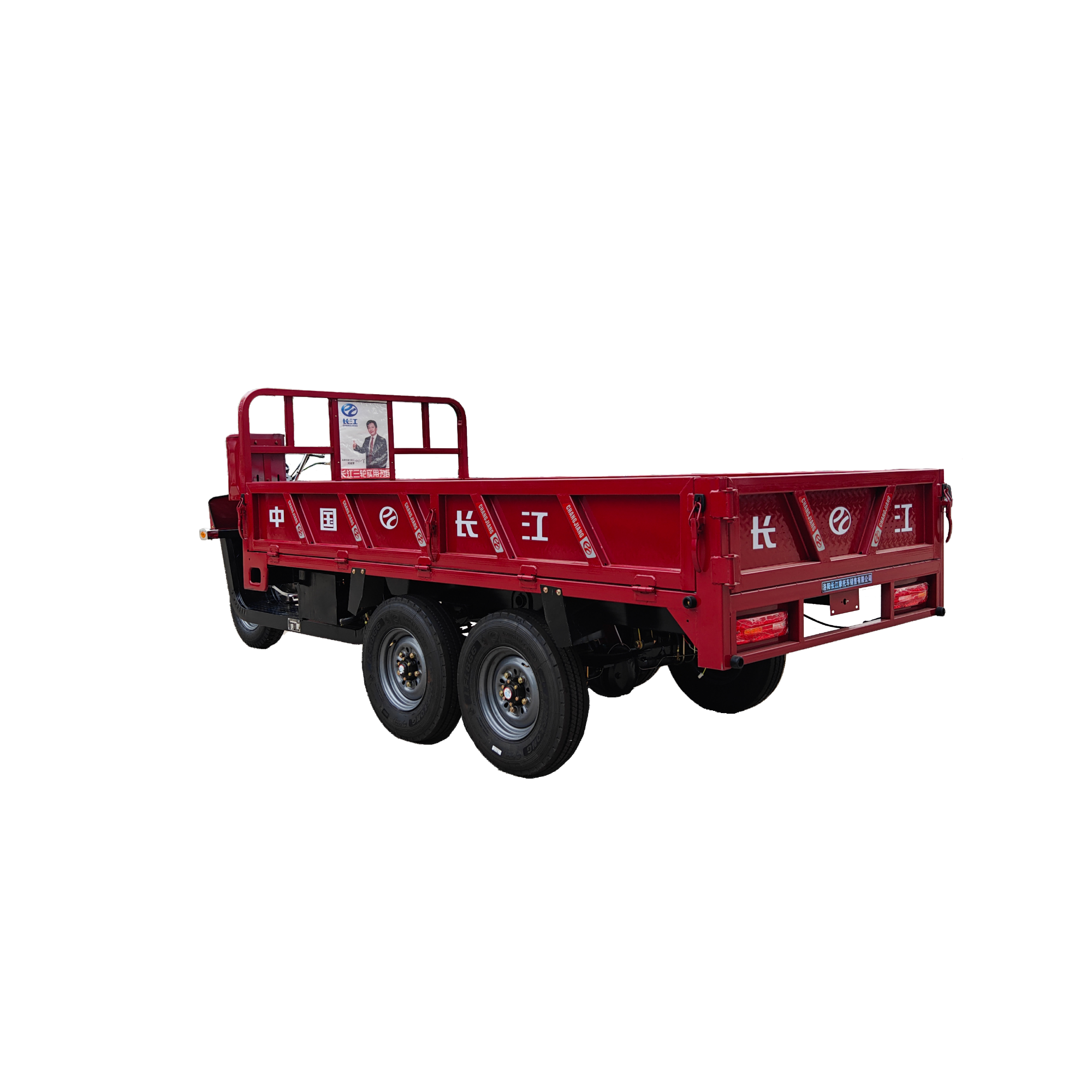

Detailed photos:

Parameters:
parameter status Specification Description
Engine Model Single-cylinder four-stroke water-cooled,Middle shaft with booster
Start Method Electric start,/foot start
Cooling Method Water Cooling
Engine Shift Mode Cycle 6 gears + high/low/reverse,(N-1-2-3-4-5-6-N and H-L-R)
Magneto Model 12v/18 class
Engine displacement 350ml
Max Power (kw/rpm)        14.5kw/6000 rpm
Max Torque (N.m/rpm)  25.N.m/4500 N.m/rpm
Vehicle size(mm) L4740*W1550*H1620(mm)
Cargo size(mm) L3100*W1500*H500(mm)
Wheelbase  (mm) 3420(mm)
Rear Wheel Track (mm)  1330(mm)
Min Ground Clearance (mm) 260(mm)
Maximum speed 60Km/h
Vehicle weight 820KG
Rated load 3500KG
Frame 40*80 keel double bone (thickness 3.0mm), 40*100 rear flat frame (thickness 2.5mm)
Leaf Spring 5+4/60*12(mm), 22KG/rack
Front Shock 60MM diameter hydraulic external spring shock absorber.
Rear axle Full suspension oil brake double rear axle with 3+1 gearbox
Tire Model Front 5.50-13, dual rear 6.00-13

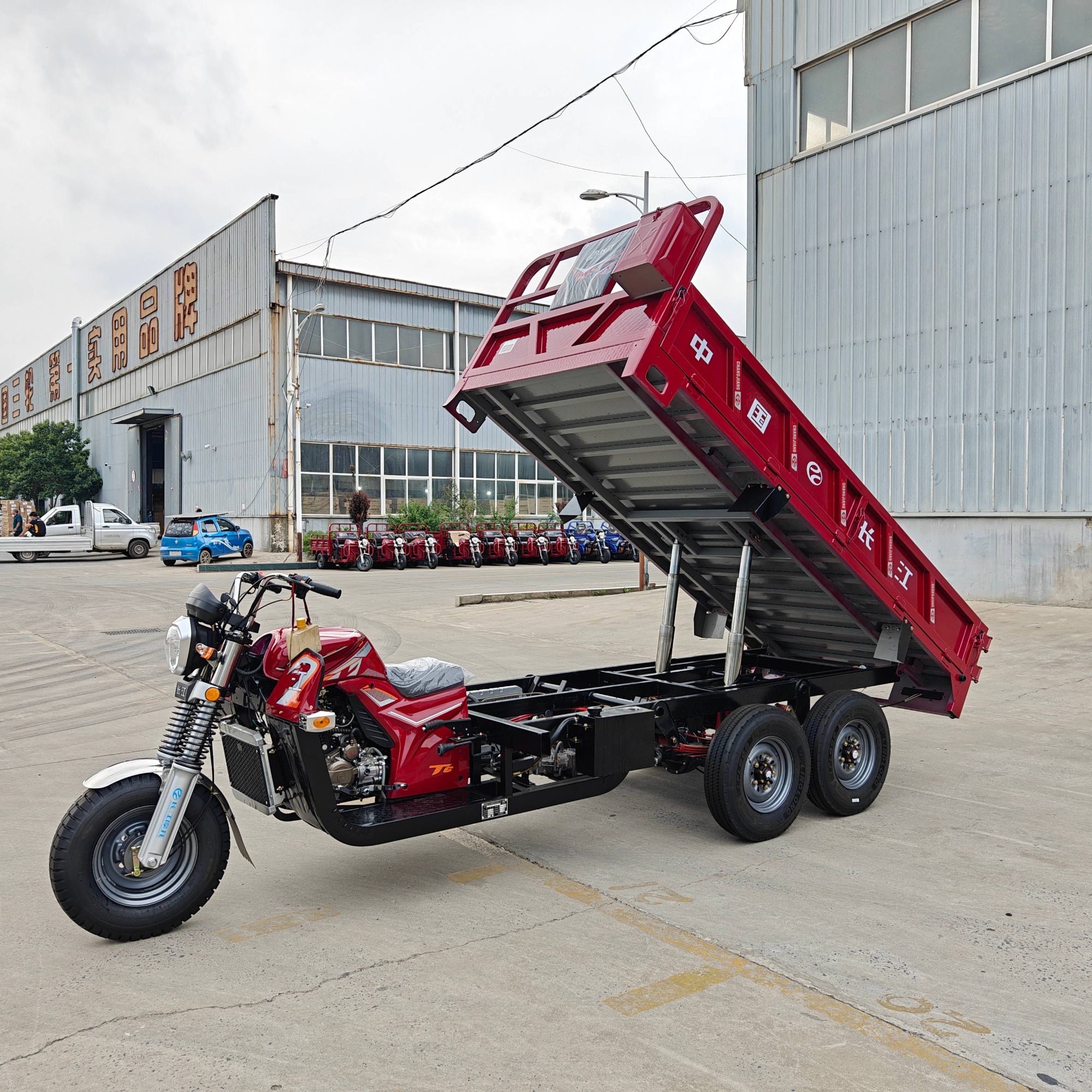

Hydraulic dump system Double-cylinder hydraulic self-unloading (Dingli MAX750, 5T double-cylinder hydraulic)
Drive mode Shaft drive
Braking method Oil brake/brake hub
Baattery 12V/32Ah maintenance-free
lead-acid battery
Can Choose Colour red, blue, black, white, yellow, green
Loading method: CKD parts
Loading Q'ty 24 units CKD/40'HG
Company information:

Henan Niegui Import and Export Trade Co., Ltd. is located in Luoyang city, Henan Province, which is the"Ancient Capital of China"."the Peony city in China", "the origin of Chinese Civilization &Culture" .It is near the"WORLD CULTURAL HERITAGE"--the Longmen Grottoes and the ShaolinTemple,20 minutes by car from Luoyang Airport, and 90 minutes by car from Zhengzhou Airport.

The company is mainly engaged in production and sales: motorcycles, side tricycles, electric vehicles, electric cargo tricycles, mopeds, motorcycle parts, engines, etc. The company produced more than 120,000 vehicles,Its brand"NIEGUI"is very famous in China and has nearly 60 years history until now .The total investment is 600 million yuan and the building area is 90,000 square meters. With a total number of 450 people, the company has three standardized workshops, modern business office buildings, staff restaurants, and apartment buildings.The company has two modern assembly production lines, a coating production line, an electrophoresis production line, a surface treatment line, a carriage molding production line and other large-scale complete production facilities and equipment. Robot welding technology is adopted for the frame and carriage. Possess advanced inspection and testing equipment: three-coordinate measuring instrument, leaf spring test bench, front shock absorption test bench, electrical test bench, tire comprehensive test bench, two vehicle inspection lines, ensuring the consistency of the factory products and all the factory products In line with national standards.

The company has always adhered to "quality first, customer first" for many years, established an extensive sales network, and its products are sold all over the world. The company focuses on quality and keeps promises, and ranks among the best in the same industry in the country. Continuously improve the level of enterprise management, has passed ISO9001: 2008 international quality management system certification, 3C certification, passed the Ministry of Industry and Information Technology production access assessment announcement, obtained production qualifications and followed IS09001 management standards, all products have "CCC" certificates, some products have " EEC" certificate, now exported to the European market. Products are exported to Egypt, Myanmar, Nepal, Cambodia, Russia, France, Italy, Australia, Britain, South America, Africa, Central Asia and other countries and regions.

Welcome the friend all over the world come to visit us and cooperation!
