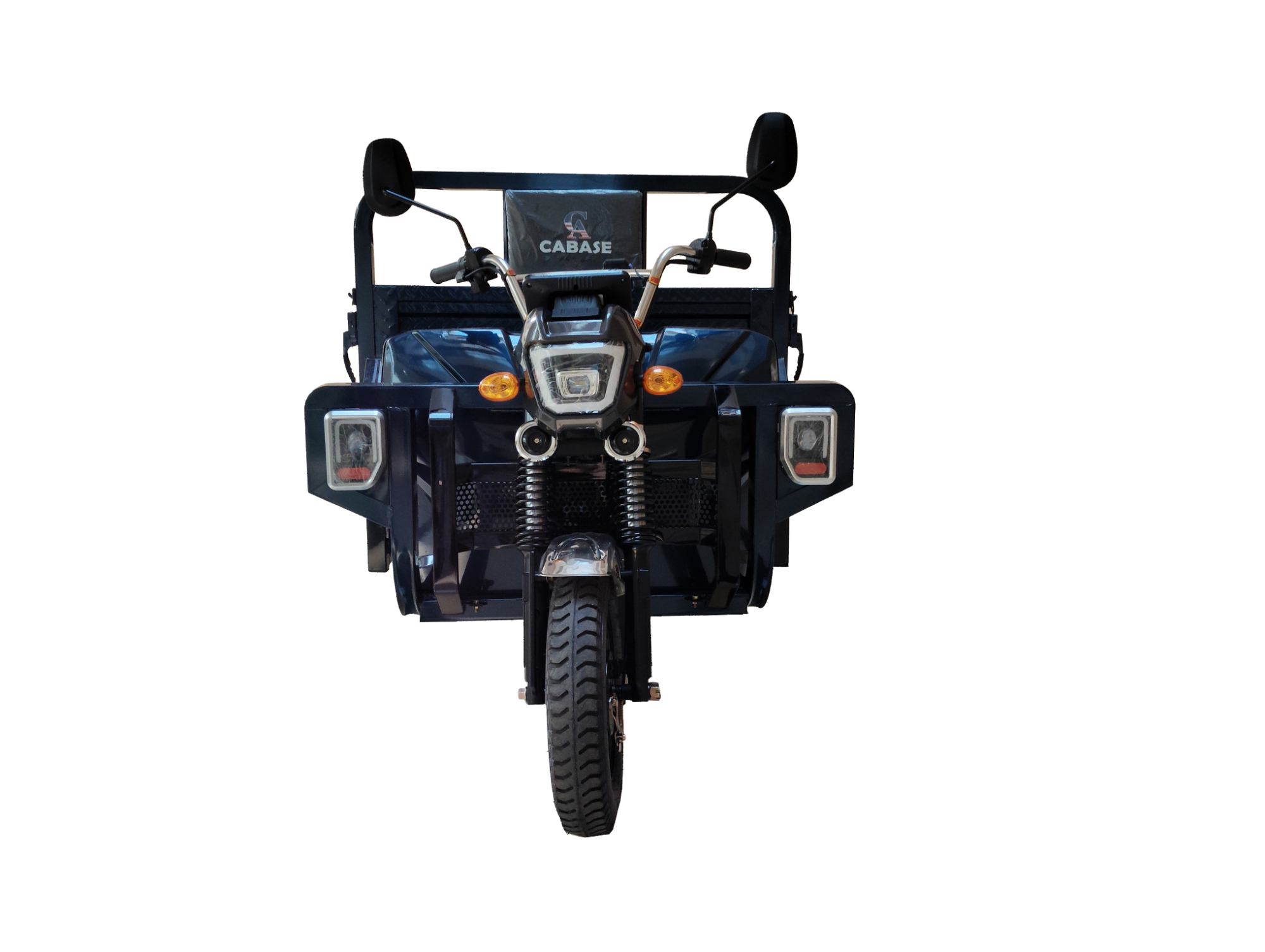

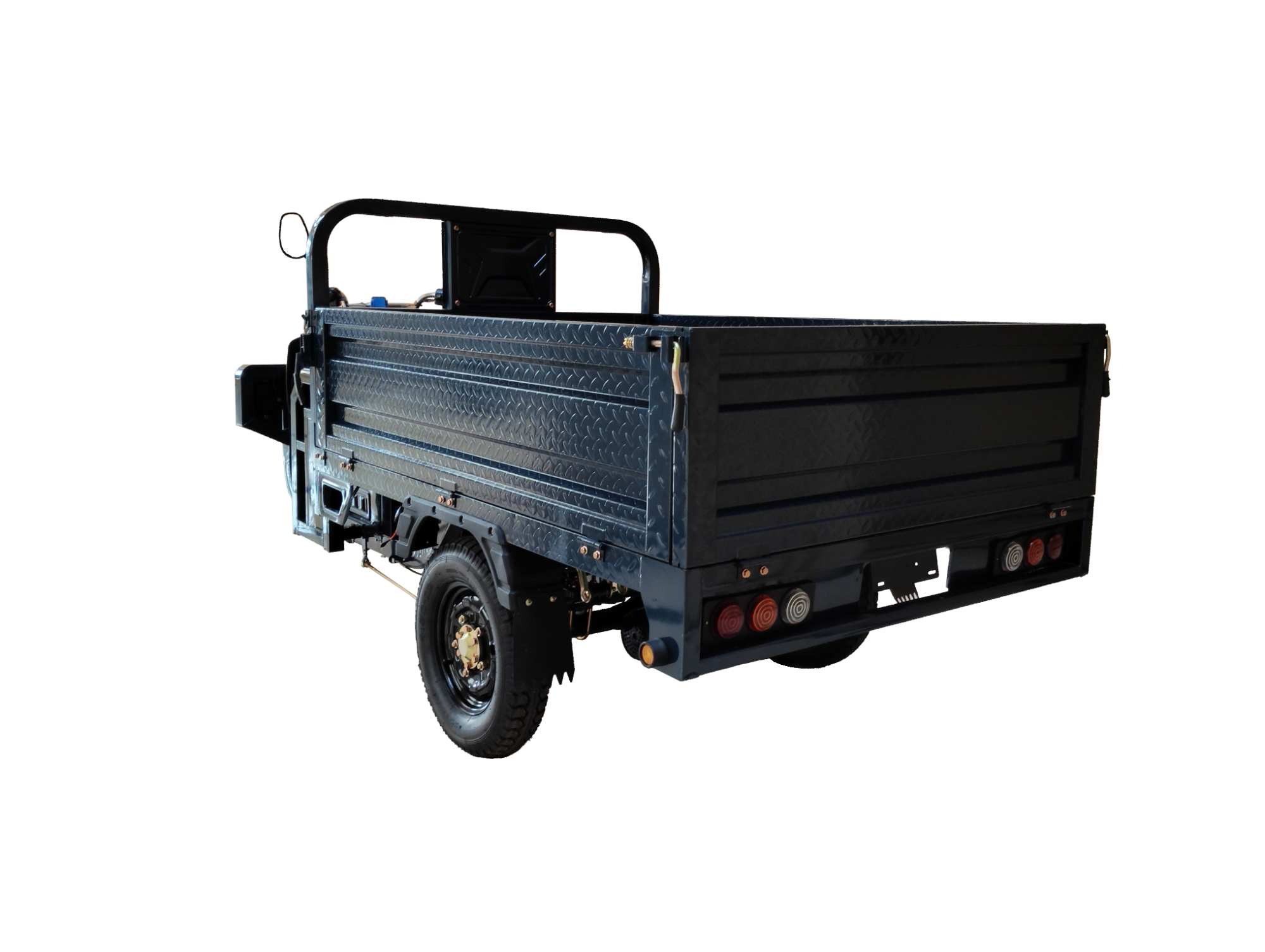

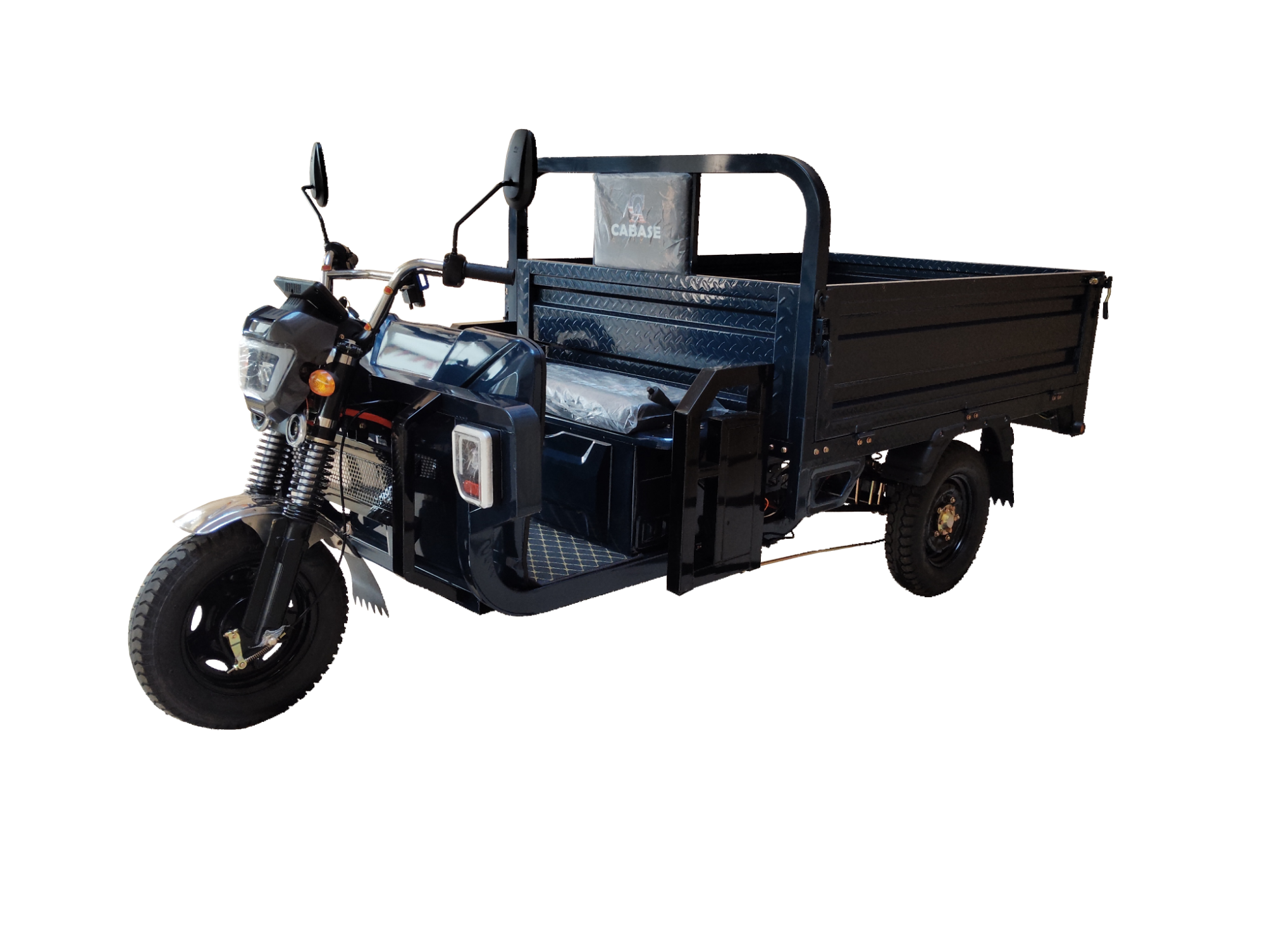

| product name | CJ-DH07 |
| Items | Details |
| Vehicle size(mm) L*W*H: | 3300*1300*1450 mm |
| Cargo box size (L*W*H) mm: | 1800*1300*510mm |
| Wheel base(mm): | 2450 |
| WHeeL Track (mm): | 1150 |
| Ground clearance(mm): | 260 |
| Curb weight: | 375kg |
| Maximum load capacity: | 1000kg |
| Max. Speed(full load): | 40km/h |
| Gradeability(full load): | 20% |
| Continued mileage: | 60-70km |

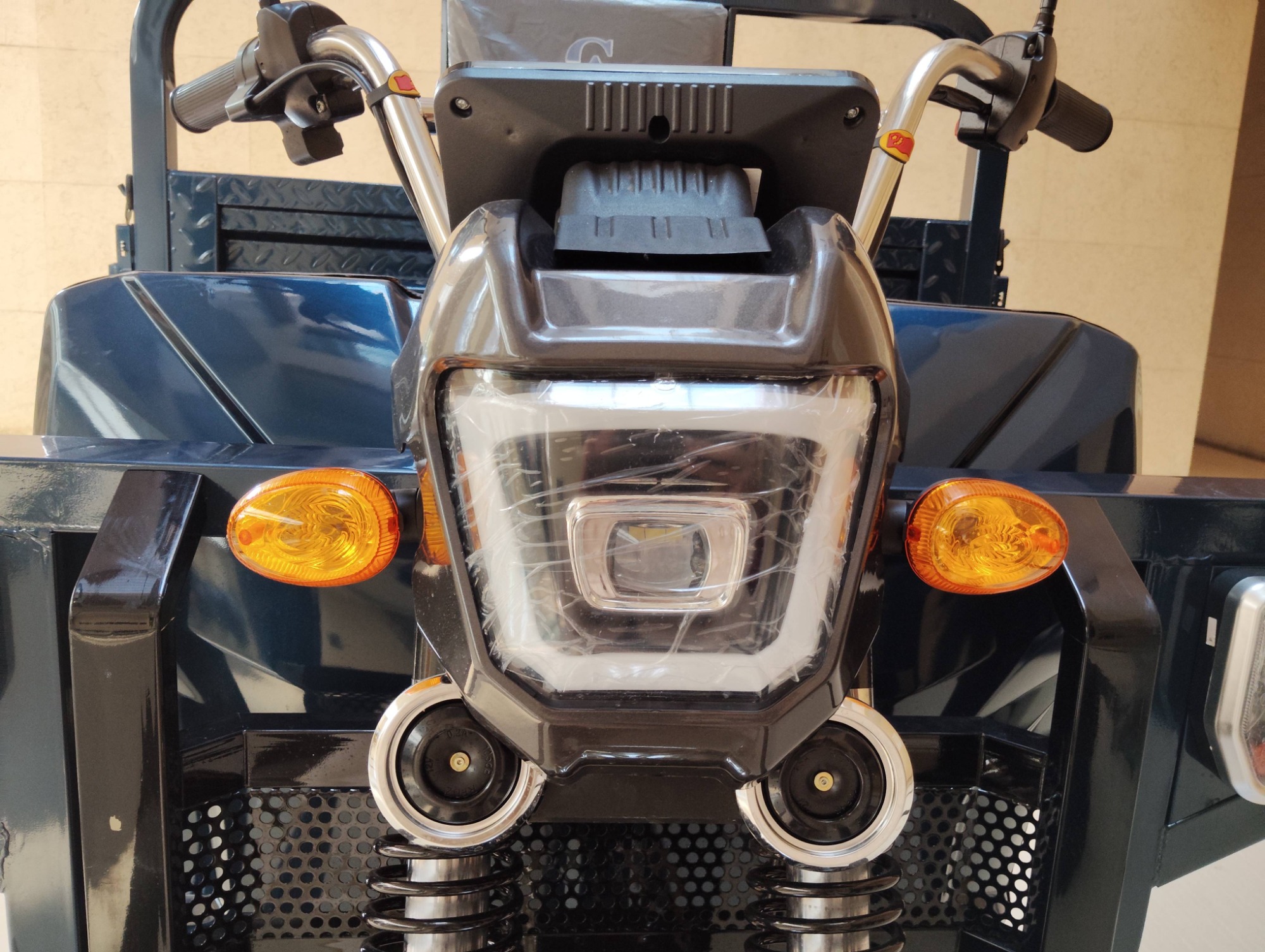

| Headlamp: | LED headlight |
| Motor Meter: | LCD digital display instrument |
| Frame: | 40*60 (mm) keel, 40*60 (mm) rear flat frame |
| Breaks: | Drum Break |
| Grears: | (High and low gear)+(Drive /Reverse) |
| Tyres model: | front/rear 5.00-12 Steel wire tire |
| Front Damper: | 43mm diameter hydraulic shock absorber |
| Rear Damper: | Cylinder spring damper |

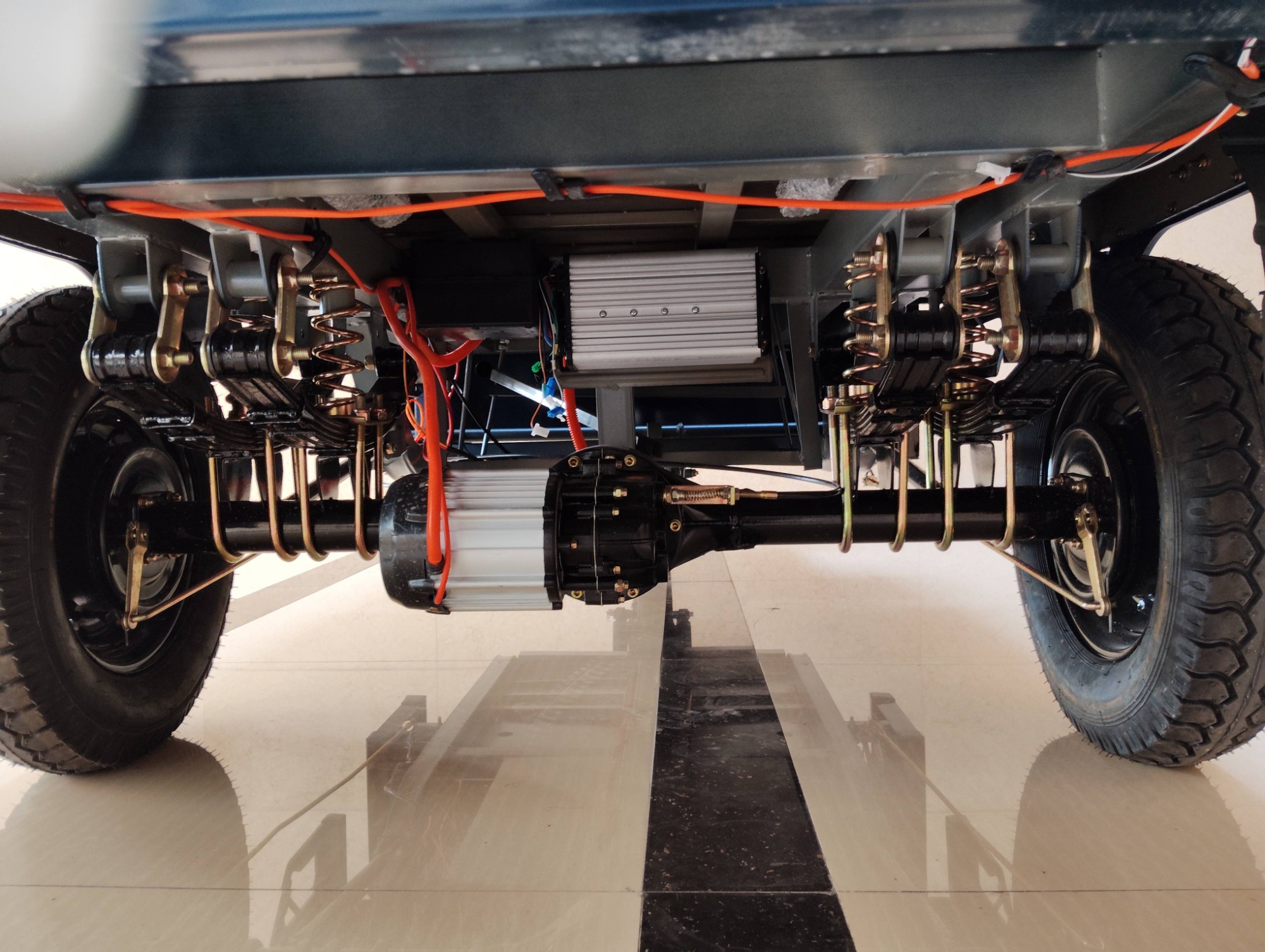

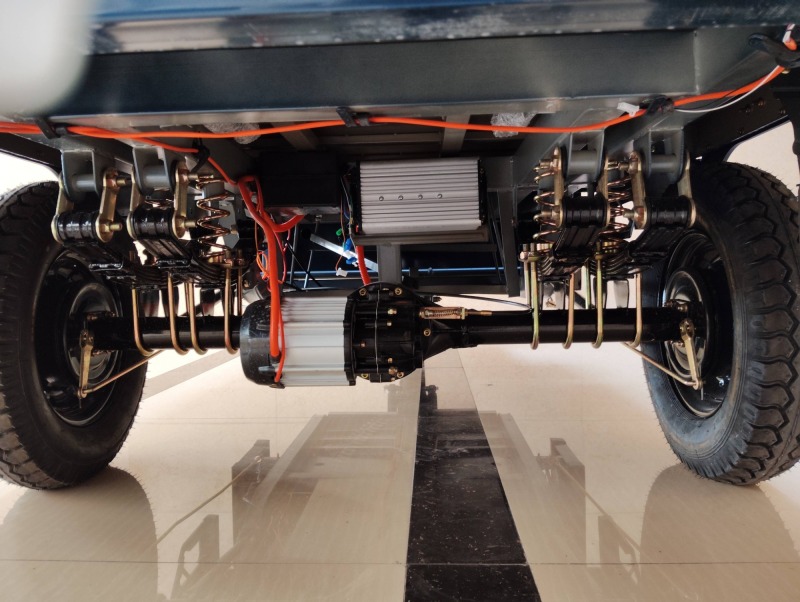

| Rear axle: | Fully suspended integrated afterburner rear axle, 180mm brake pan |
| Leaf spring: | 6 pieces/60mm*8mm steel plate, double steel plate |
| battery capacity: | 72V/58Ah/lead-acid maintenance-free battery |
| Motor: | 72V/1800W Permanent Magnet Synchronous Motor |
| Motor Control Unit: | 24 tubes |
| Charging time: | About 6 -8Hours/ |
| Wiring Harness: | IP54 Waterproof Level IP54/ |
| Standard: | Mobile phone charging, spare tire, helmet, pump |
| Loading quantity: | 48 units CKD /40'HQ |
Henan Niegui Import and Export Trade Co., Ltd. is located in Luoyang city, Henan Province, which is the"Ancient Capital of China"."the Peony city in China", "the origin of Chinese Civilization &Culture" .It is near the"WORLD CULTURAL HERITAGE"--the Longmen Grottoes and the ShaolinTemple,20 minutes by car from Luoyang Airport, and 90 minutes by car from Zhengzhou Airport.
The company is mainly engaged in production and sales: motorcycles, side tricycles, electric vehicles, electric cargo tricycles, mopeds, motorcycle parts, engines, etc. The company produced more than 120,000 vehicles,Its brand"NIEGUI"is very famous in China and has nearly 60 years history until now .The total investment is 600 million yuan and the building area is 90,000 square meters. With a total number of 450 people, the company has three standardized workshops, modern business office buildings, staff restaurants, and apartment buildings.The company has two modern assembly production lines, a coating production line, an electrophoresis production line, a surface treatment line, a carriage molding production line and other large-scale complete production facilities and equipment. Robot welding technology is adopted for the frame and carriage. Possess advanced inspection and testing equipment: three-coordinate measuring instrument, leaf spring test bench, front shock absorption test bench, electrical test bench, tire comprehensive test bench, two vehicle inspection lines, ensuring the consistency of the factory products and all the factory products In line with national standards.
The company has always adhered to "quality first, customer first" for many years, established an extensive sales network, and its products are sold all over the world. The company focuses on quality and keeps promises, and ranks among the best in the same industry in the country. Continuously improve the level of enterprise management, has passed ISO9001: 2008 international quality management system certification, 3C certification, passed the Ministry of Industry and Information Technology production access assessment announcement, obtained production qualifications and followed IS09001 management standards, all products have "CCC" certificates, some products have " EEC" certificate, now exported to the European market. Products are exported to Egypt, Myanmar, Nepal, Cambodia, Russia, France, Italy, Australia, Britain, South America, Africa, Central Asia and other countries and regions.
Welcome the friend all over the world come to visit us and cooperation!
