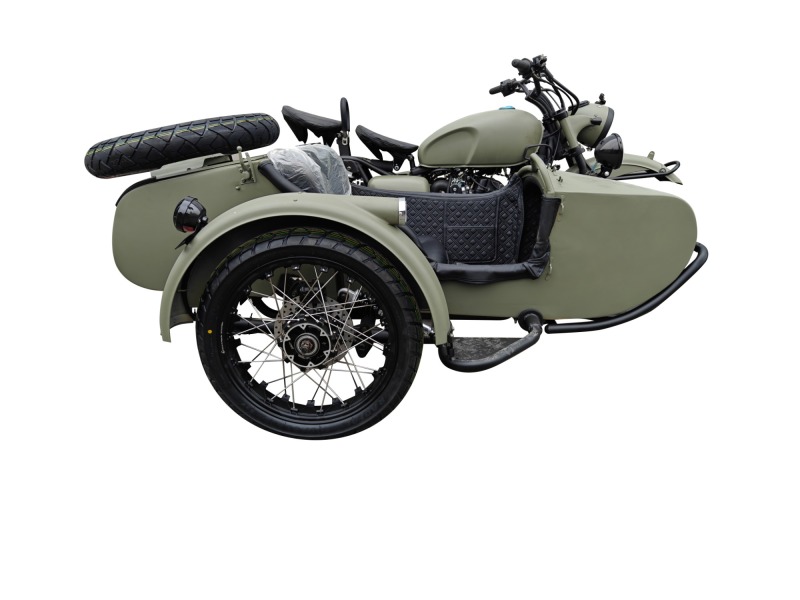

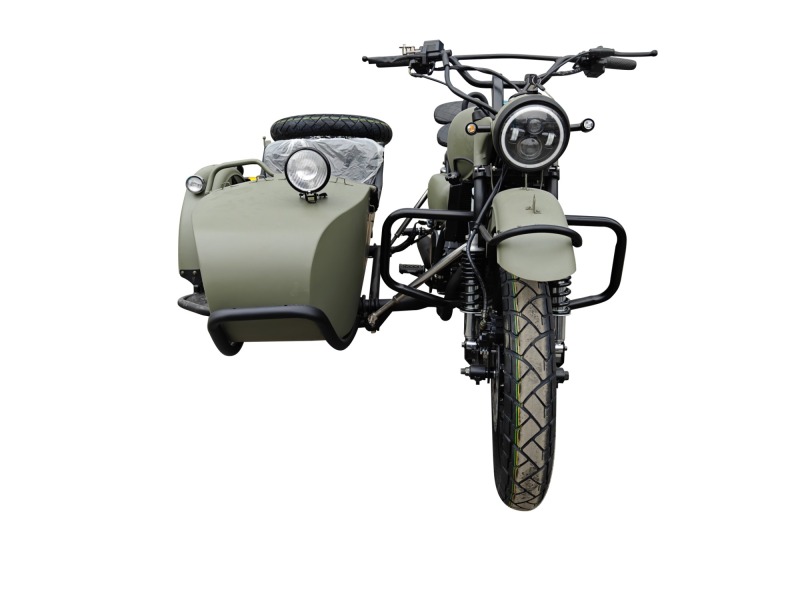

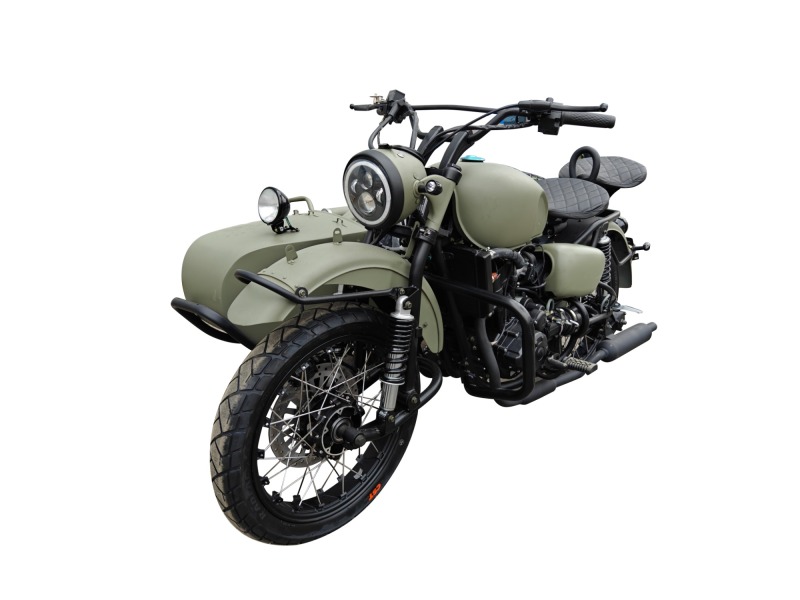

2024 New Side Three-Wheel Motorcycle/Sidecar/500cc water-cooled

Item No.: 00388
Length x width x height (mm) :2400×1650×1150,Curb weight(Kg):350KG,Rated passenger (including driver) :3,Main tank capacity (L) :18,Maximum speed (km/h) :140,ENGINE:500cc,Twin-cylinder water-cooled, four-stroke
Description
Description
Detailed photos:


Parameter:
Base Specification
Length x width x height (mm) : 2400×1650×1150
Wheelbase (mm) : 1470
Seat height (mm) : 760
Ground clearance (mm) : 200
Curb weight(Kg): 350KG
Fully loaded mass (kg) : 545Kg
Rated passenger (including driver) : 3
Main tank capacity (L) : 18
Maximum speed (km/h) : 140
Transmission type: Transmission mode: mechanical, manual, pedal, shaft transmission
Battery specifications: 12V11.2Ah
Power Performance
Ignition mode: ECU
Starting mode: Electric Starting
Speed change mode: By Foot/6 Gear
ENGINE: 446cc
Cylinder diameter x stroke (mm) : 65.5*66.2
Maximum power (kW) : 22KW/7500r/min
Maximum torque (N.m) : 33Nm/5000r/min
Engine type: Twin-cylinder water-cooled, four-stroke
Valve CAM device: DOHC double overhead camshaft
Clutch type: FCC
Fuel supply mode: EFI
Cylinder compression ratio: 9.5-10.3
Control System:
Front braking system: Three cylinder hydraulic pump
Front floating disk diameter: 320mm
Rear brake system: Single cylinder hydraulic pump
Brake disc diameter: 256mm
Front shock absorption: 41mm forward-mounted hydraulic shock absorption
Front/rear rims: 2.75x19
Front/rear tires: 110/80-19
Side & Rear shock absorber: 5 - Section adjustable hydraulic spring shock absorber
Suspension mode: front: Telescopic (29 degrees); Rear: cantilever type
Company information:

Henan Niegui Import and Export Trade Co., Ltd. is located in Luoyang city, Henan Province, which is the"Ancient Capital of China"."the Peony city in China", "the origin of Chinese Civilization &Culture" .It is near the"WORLD CULTURAL HERITAGE"--the Longmen Grottoes and the ShaolinTemple,20 minutes by car from Luoyang Airport, and 90 minutes by car from Zhengzhou Airport.

The company is mainly engaged in production and sales: motorcycles, side tricycles, electric vehicles, electric cargo tricycles, mopeds, motorcycle parts, engines, etc. The company produced more than 120,000 vehicles,Its brand"NIEGUI"is very famous in China and has nearly 60 years history until now .The total investment is 600 million yuan and the building area is 90,000 square meters. With a total number of 450 people, the company has three standardized workshops, modern business office buildings, staff restaurants, and apartment buildings.The company has two modern assembly production lines, a coating production line, an electrophoresis production line, a surface treatment line, a carriage molding production line and other large-scale complete production facilities and equipment. Robot welding technology is adopted for the frame and carriage. Possess advanced inspection and testing equipment: three-coordinate measuring instrument, leaf spring test bench, front shock absorption test bench, electrical test bench, tire comprehensive test bench, two vehicle inspection lines, ensuring the consistency of the factory products and all the factory products In line with national standards.

The company has always adhered to "quality first, customer first" for many years, established an extensive sales network, and its products are sold all over the world. The company focuses on quality and keeps promises, and ranks among the best in the same industry in the country. Continuously improve the level of enterprise management, has passed ISO9001: 2008 international quality management system certification, 3C certification, passed the Ministry of Industry and Information Technology production access assessment announcement, obtained production qualifications and followed IS09001 management standards, all products have "CCC" certificates, some products have " EEC" certificate, now exported to the European market. Products are exported to Egypt, Myanmar, Nepal, Cambodia, Russia, France, Italy, Australia, Britain, South America, Africa, Central Asia and other countries and regions.

Welcome the friend all over the world come to visit us and cooperation!
