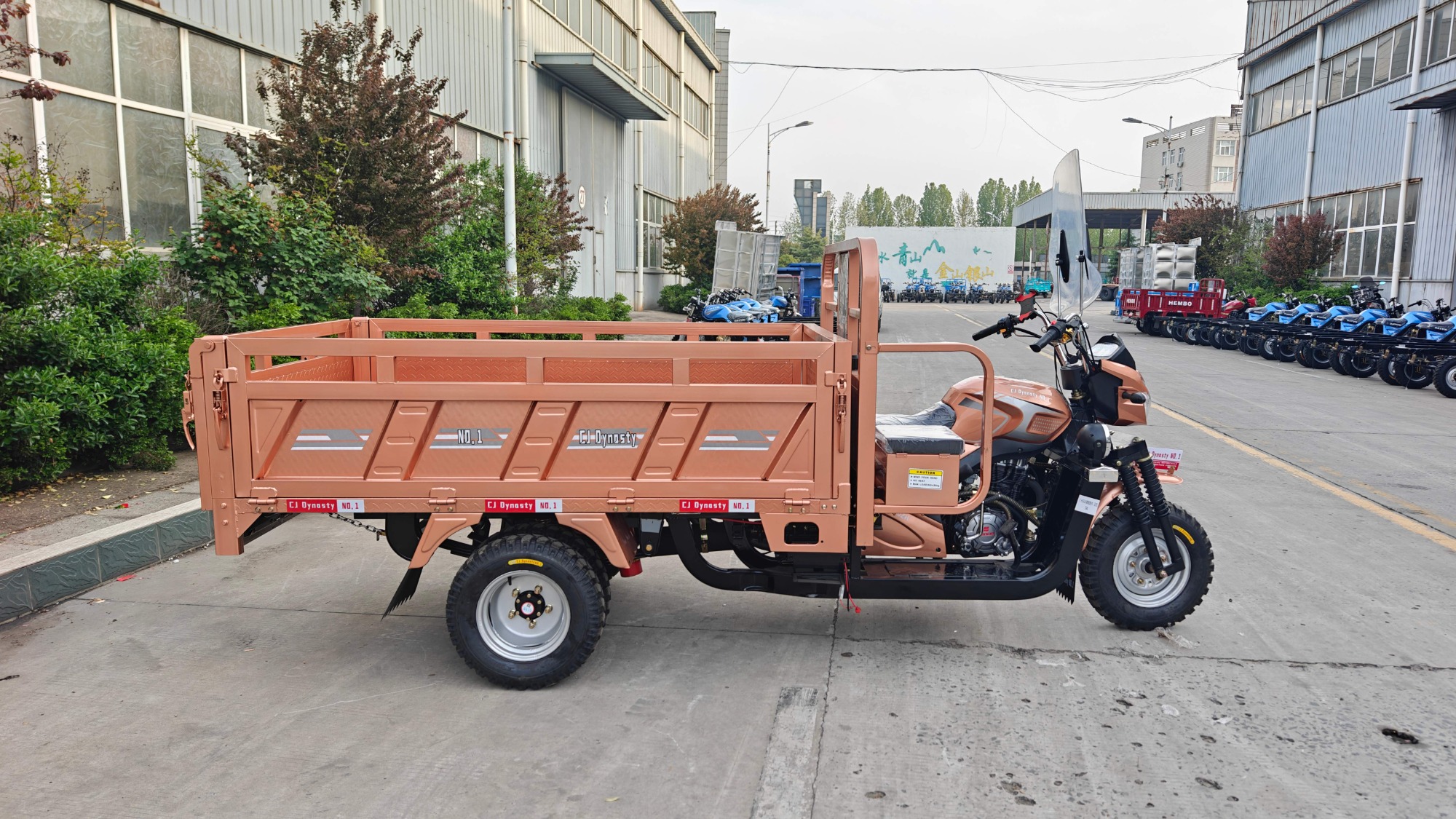

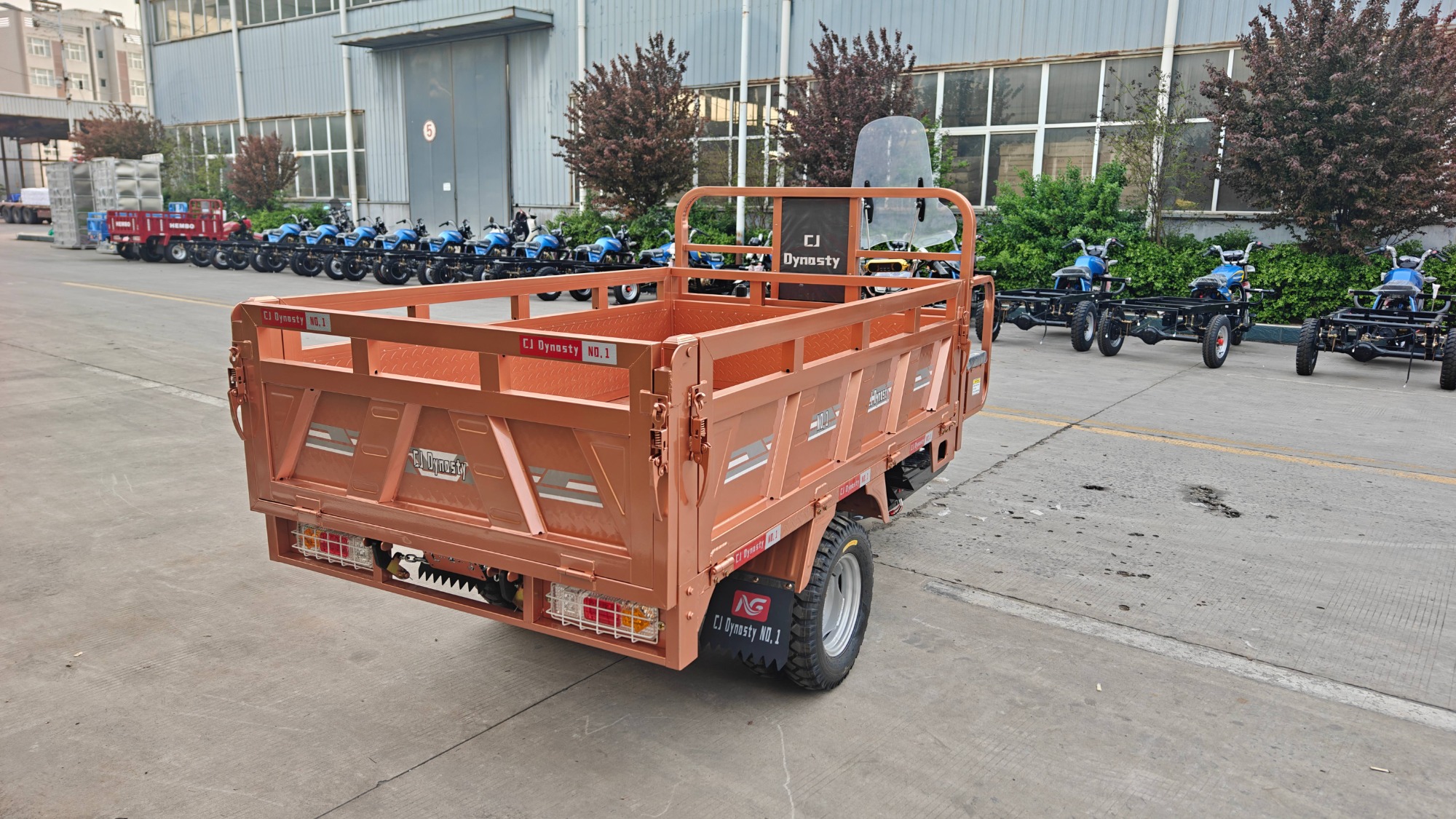

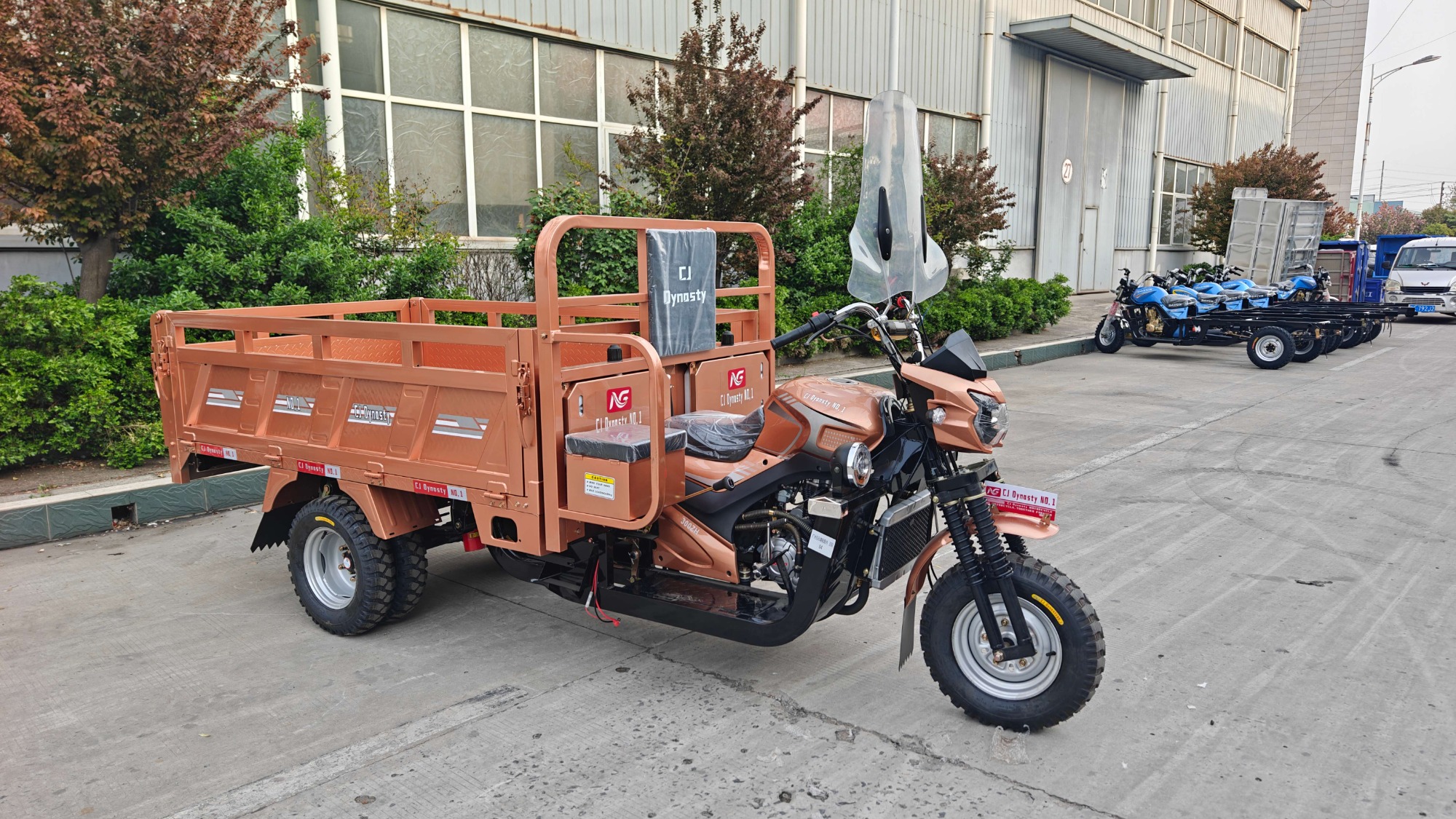

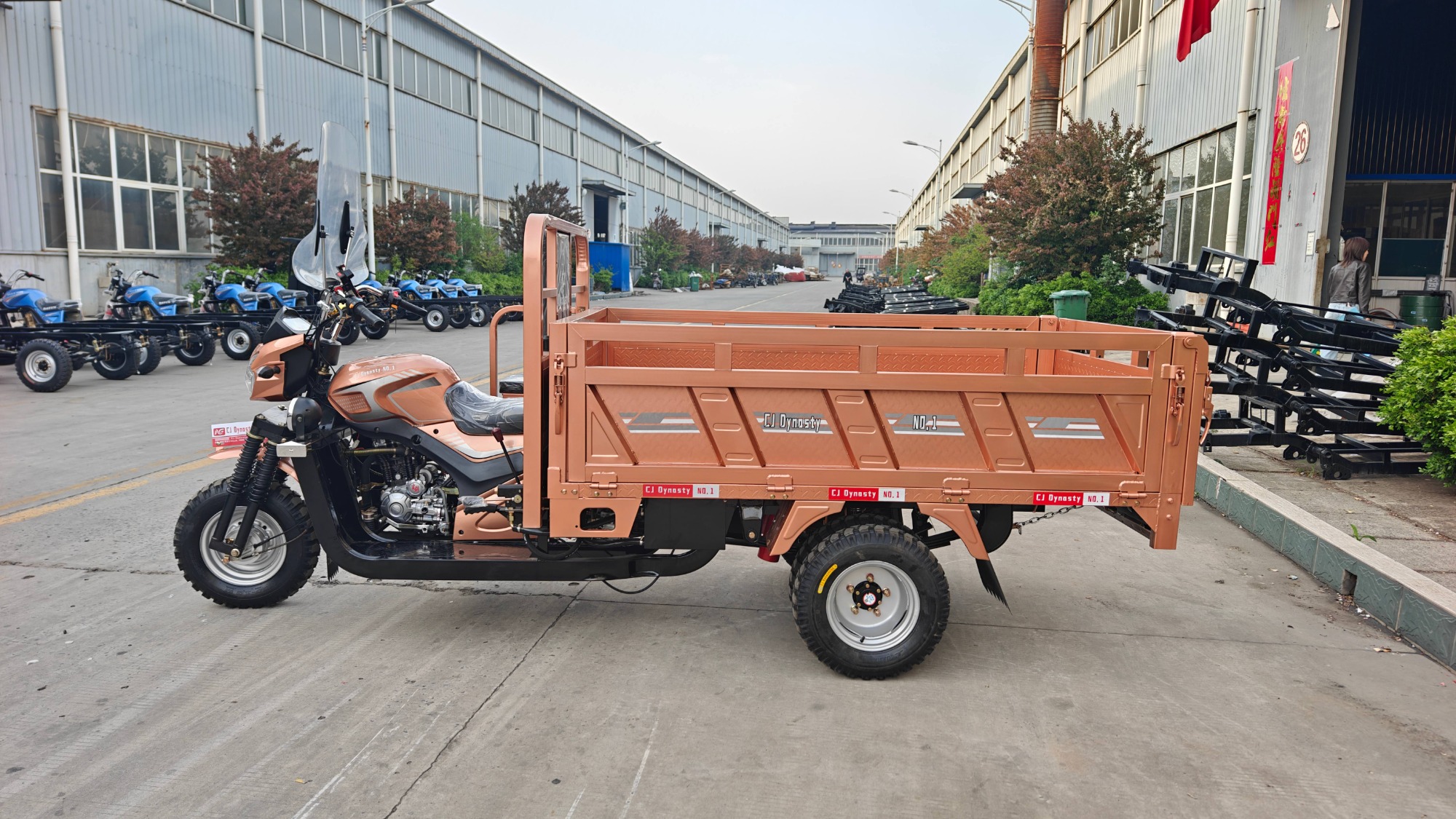

200cc/250cc/300cc/350cc Gasoline Three-Wheeled Motorcycles, Heavy-Duty Gasoline Vehicles

Item No.: 00551
Electric start,/foot start,Water Cooling,5-digit international file,40*80 keel double bone (thickness 3.0mm), 40*80 rear flat frame (thickness 2.5mm),5+4/60*12(mm), 22KG/rack,Hydraulic single-arm four-spring shock absorber,
Description
Description
Product description:
Electric start,/foot start,Water Cooling,5-digit international file,40*80 keel double bone (thickness 3.0mm), 40*80 rear flat frame (thickness 2.5mm),5+4/60*12(mm), 22KG/rack,Hydraulic single-arm four-spring shock absorber,"Dongba" External Suspension Afterburner King 63mm*70mm Square Tube Oil Brake Rear Axle, 220mm Brake Pot, Speed Ratio 9:23,Dual-cylinder hydraulic self-unloading type (Dingli MAX750, 5-ton dual-cylinder hydraulic),12V/32Ah maintenance-free lead-acid battery

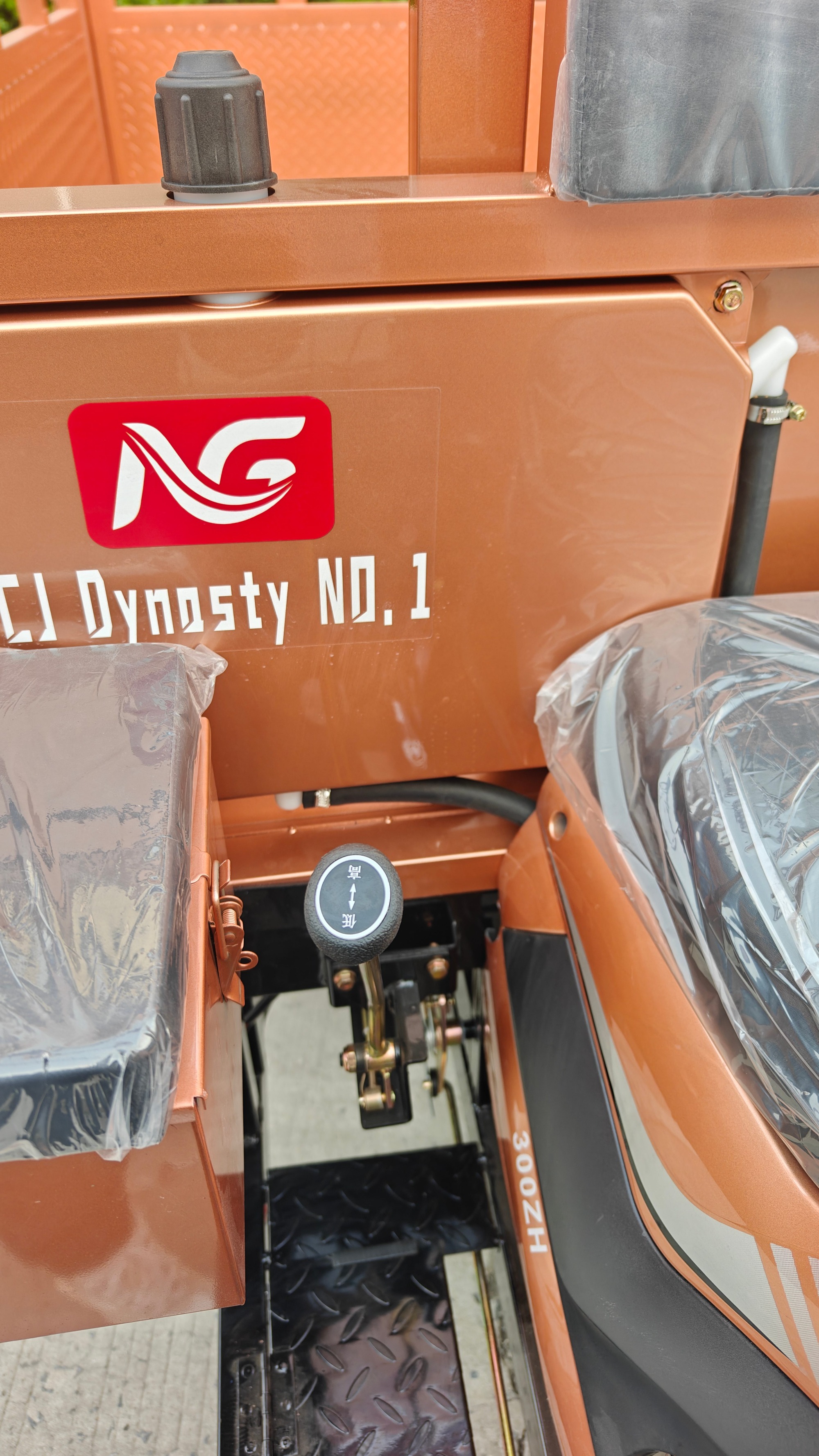

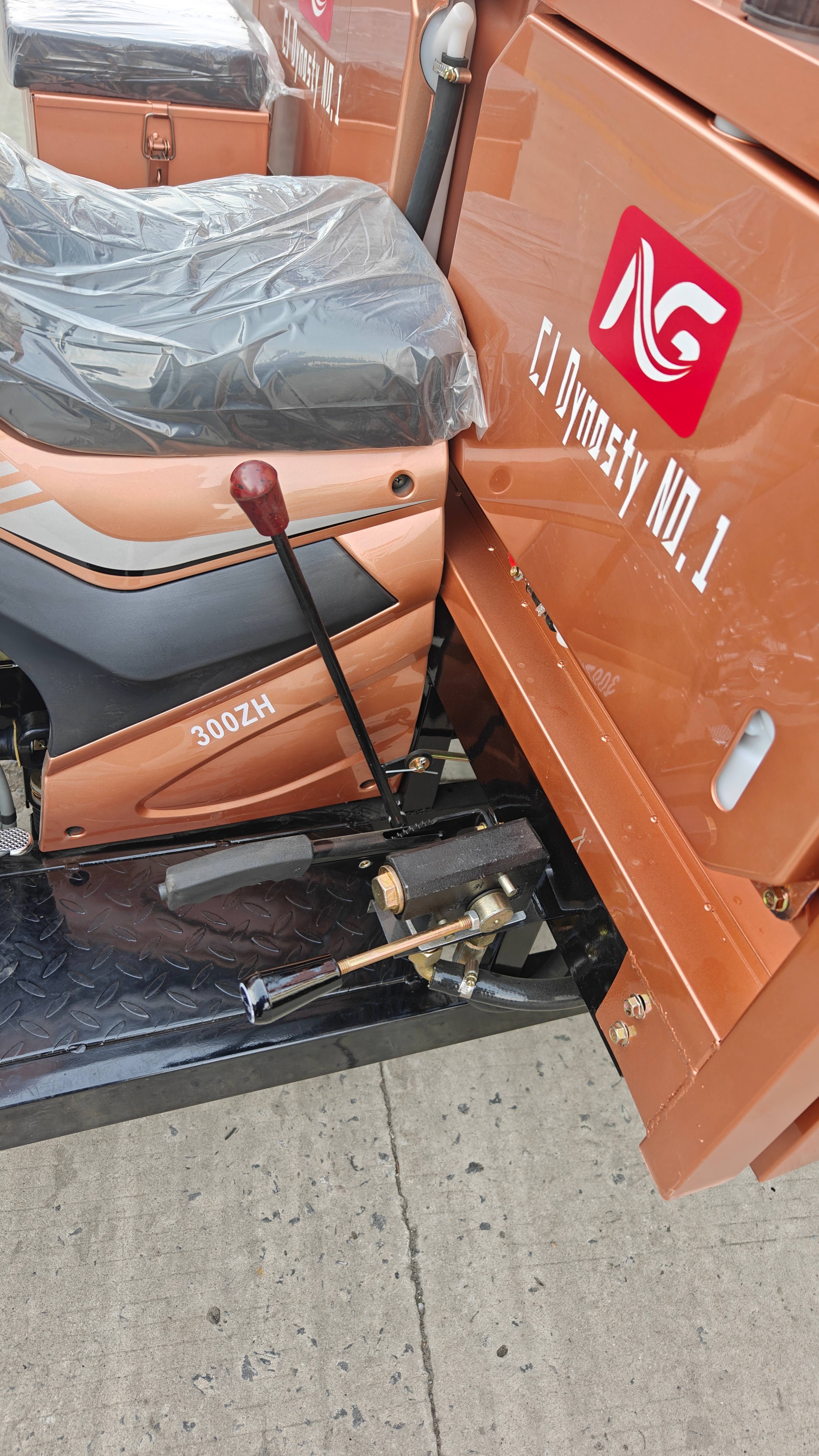

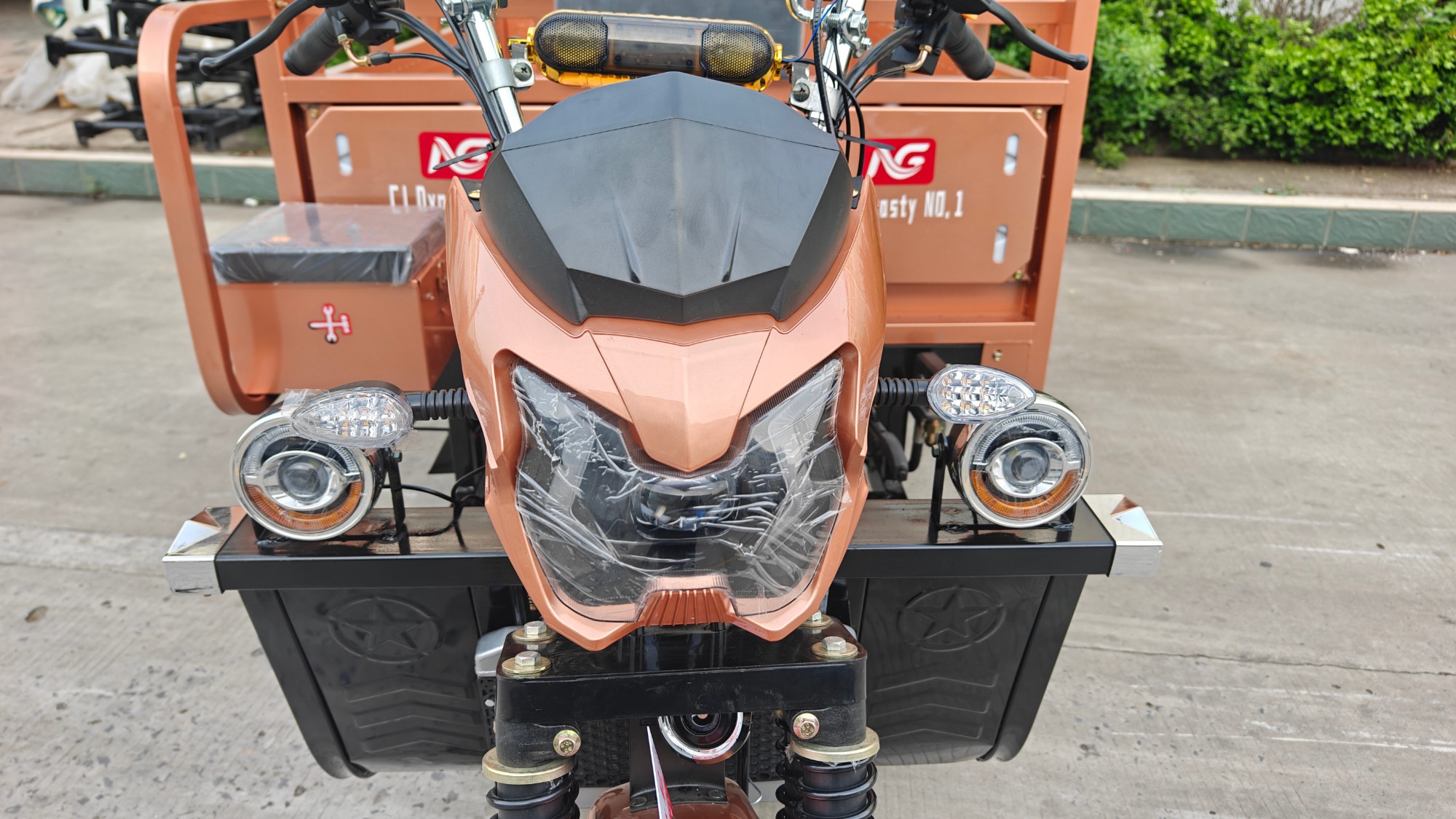

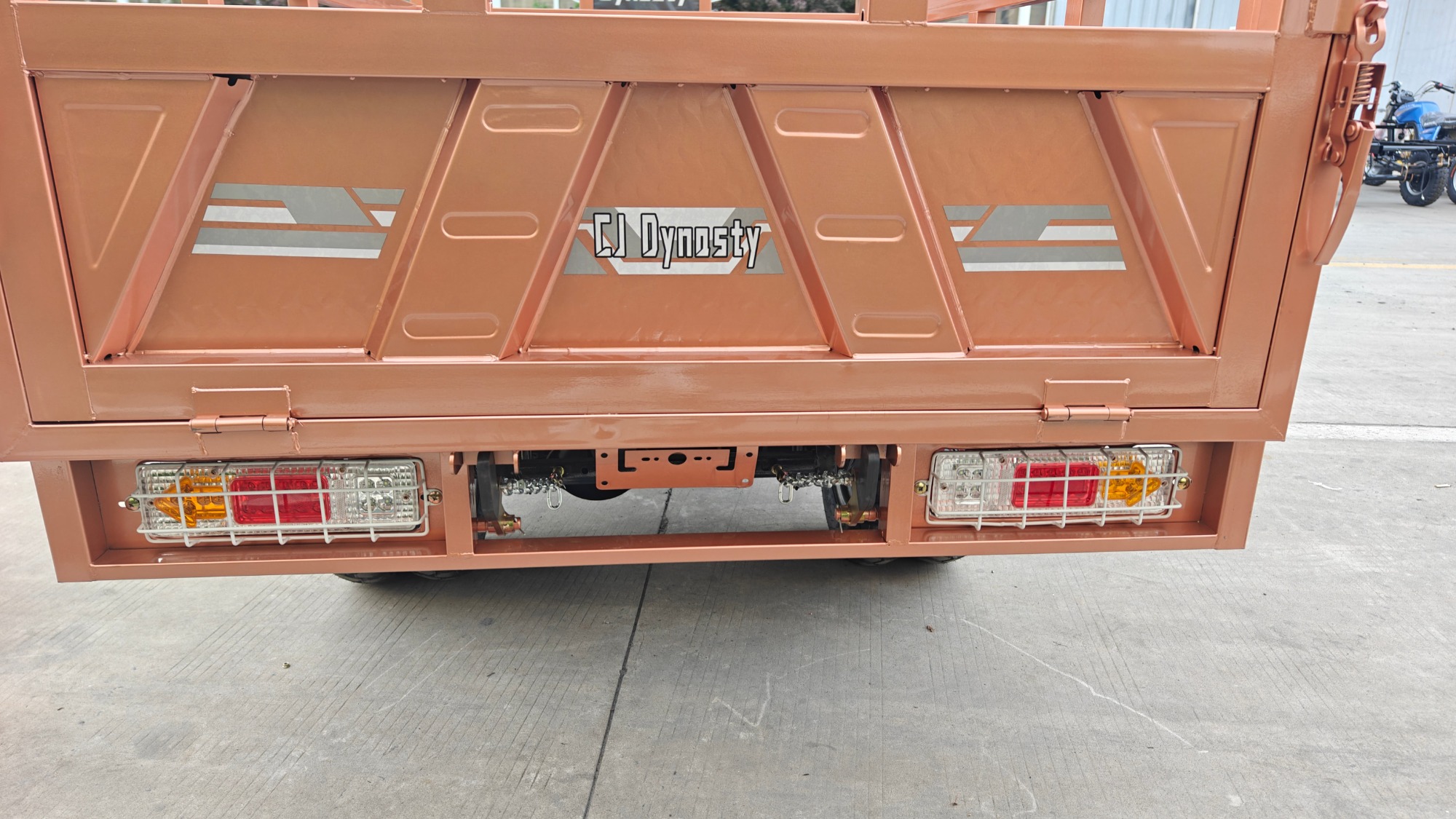

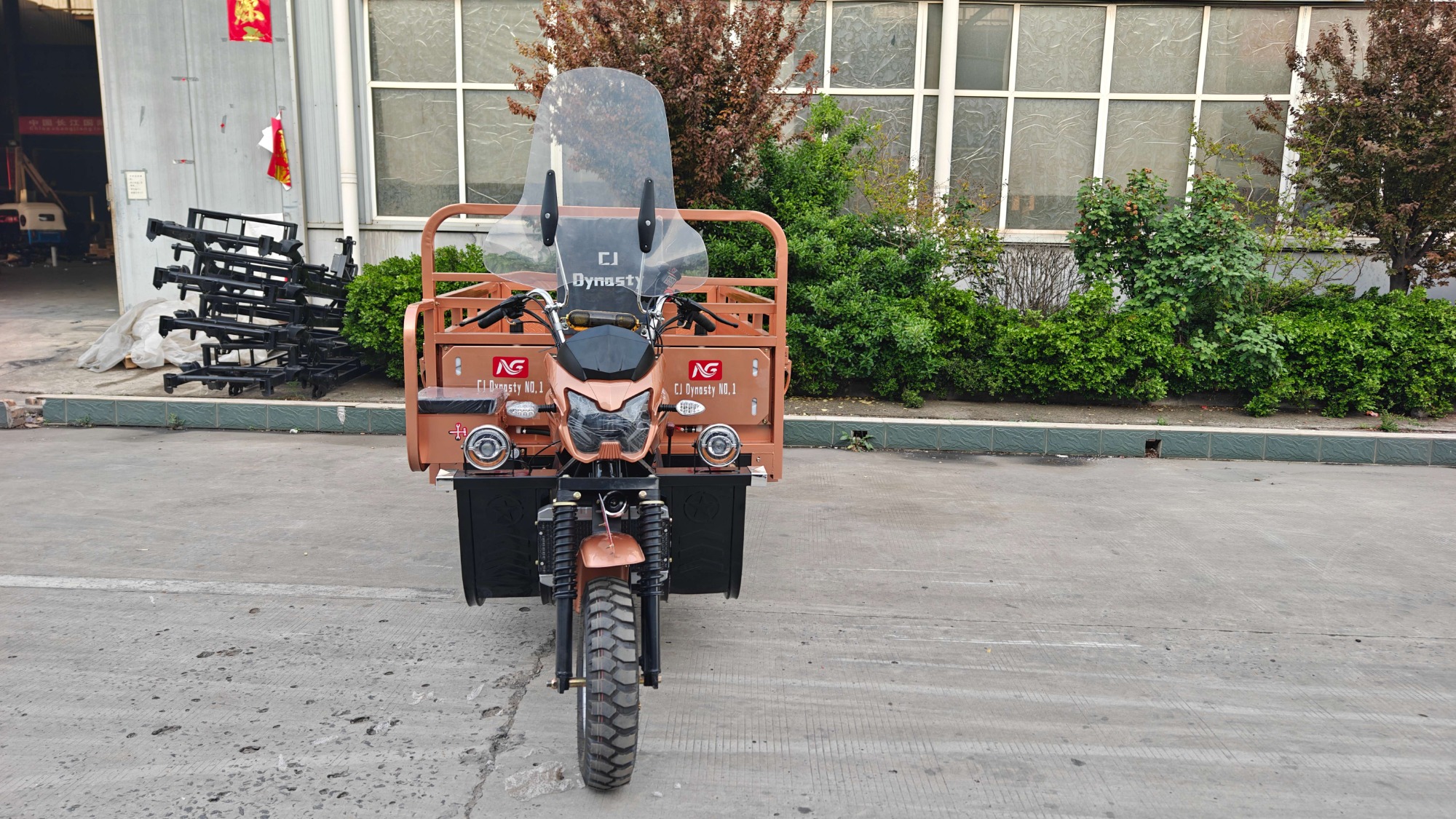

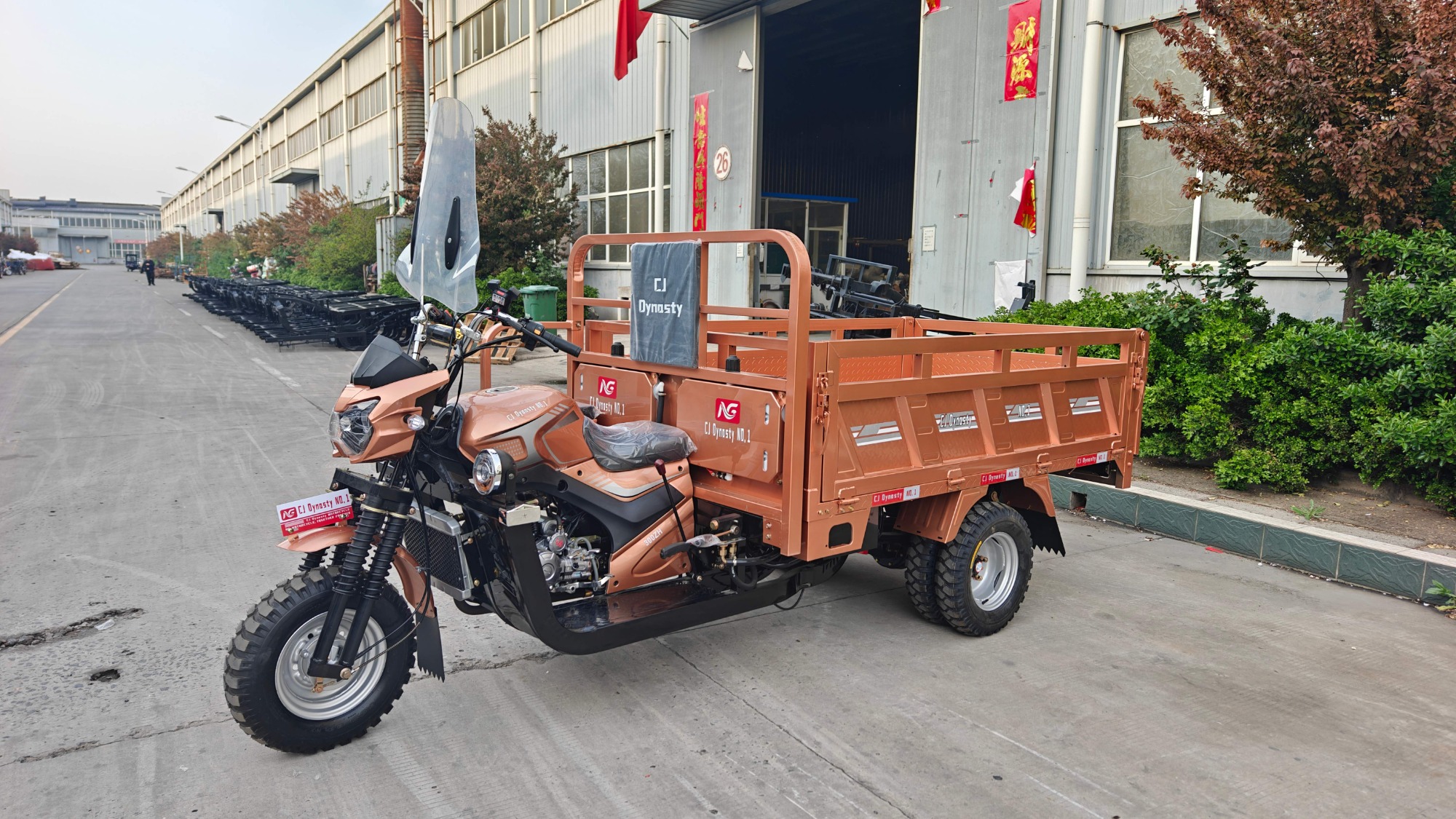

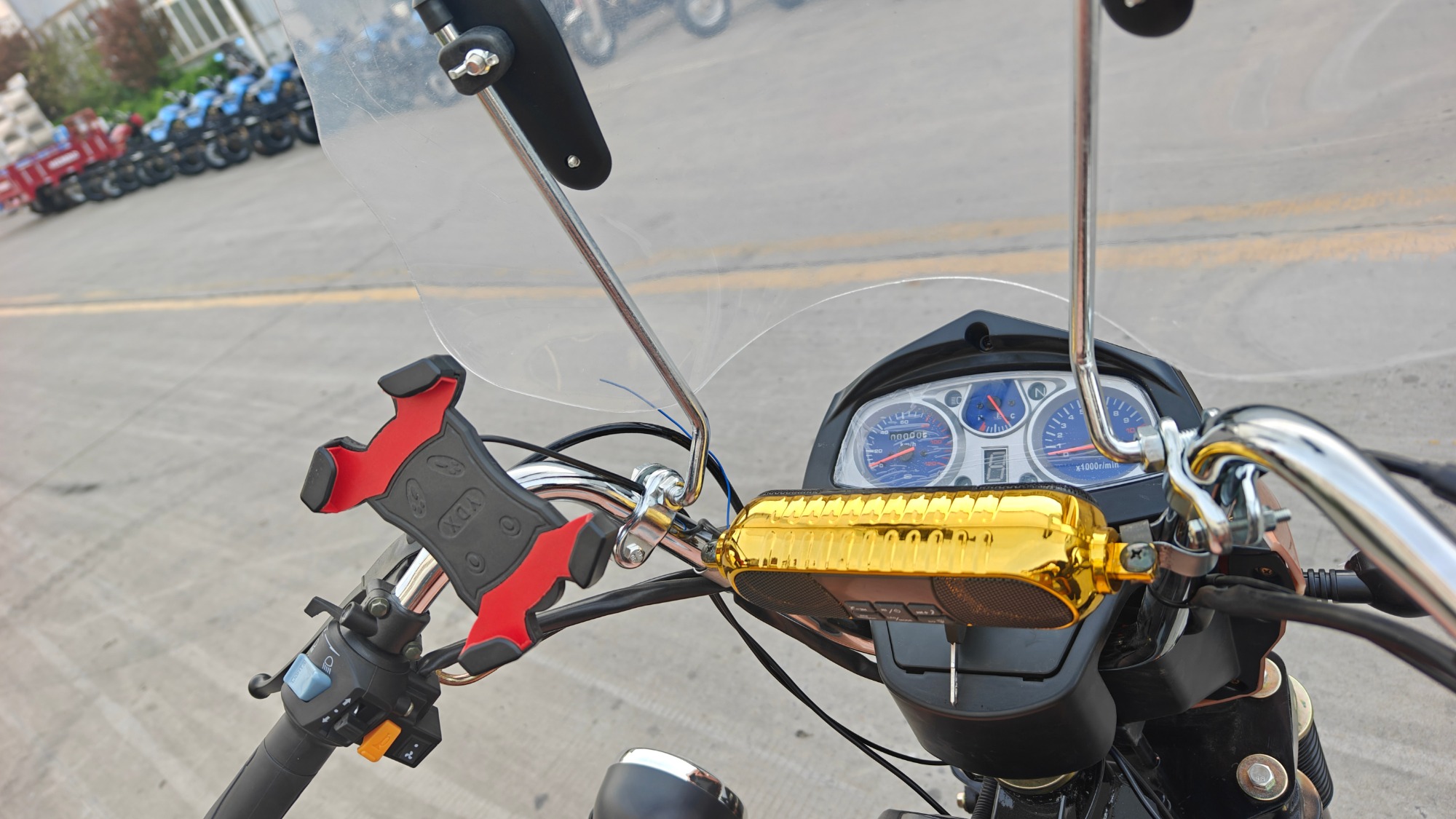

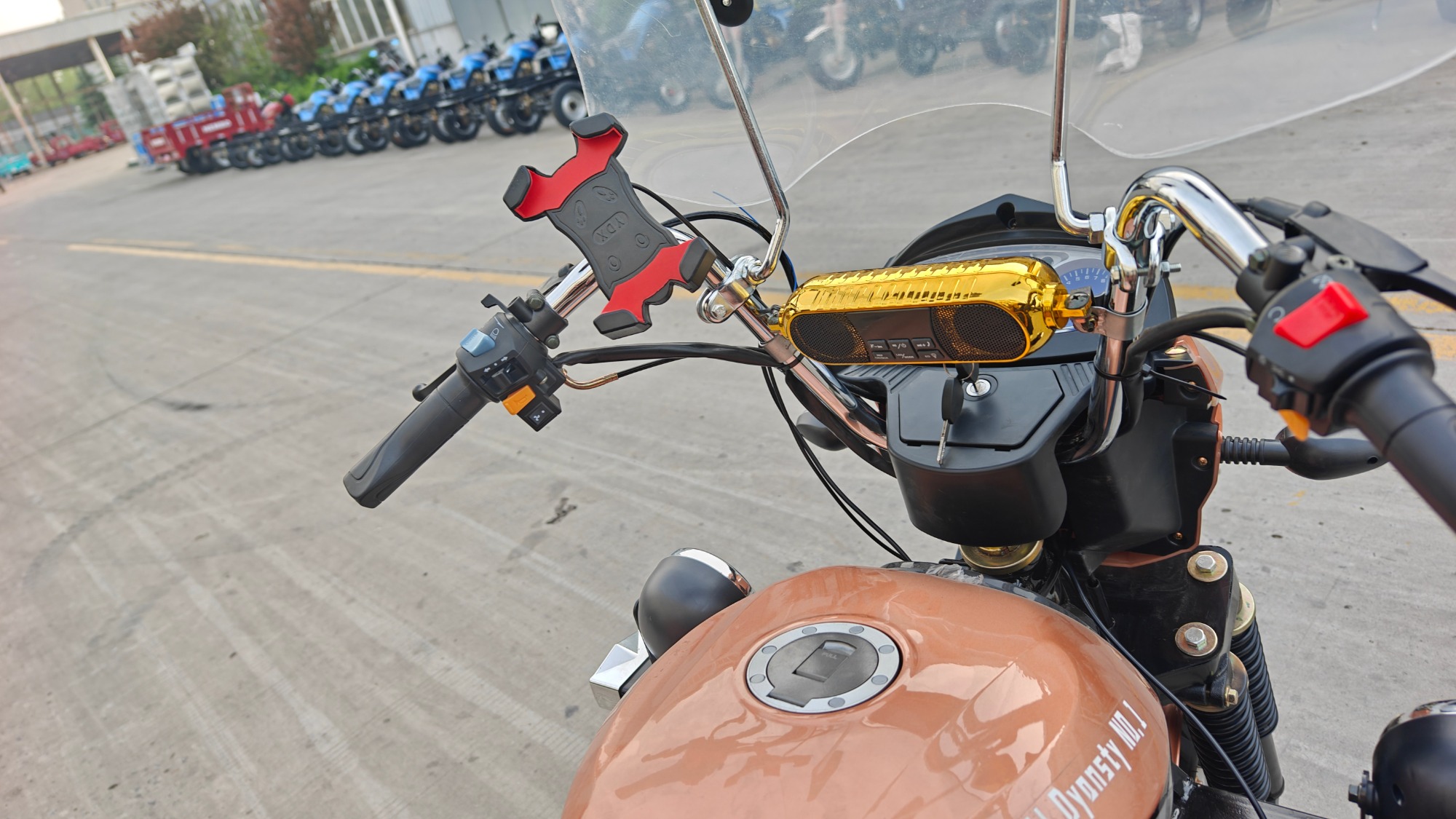

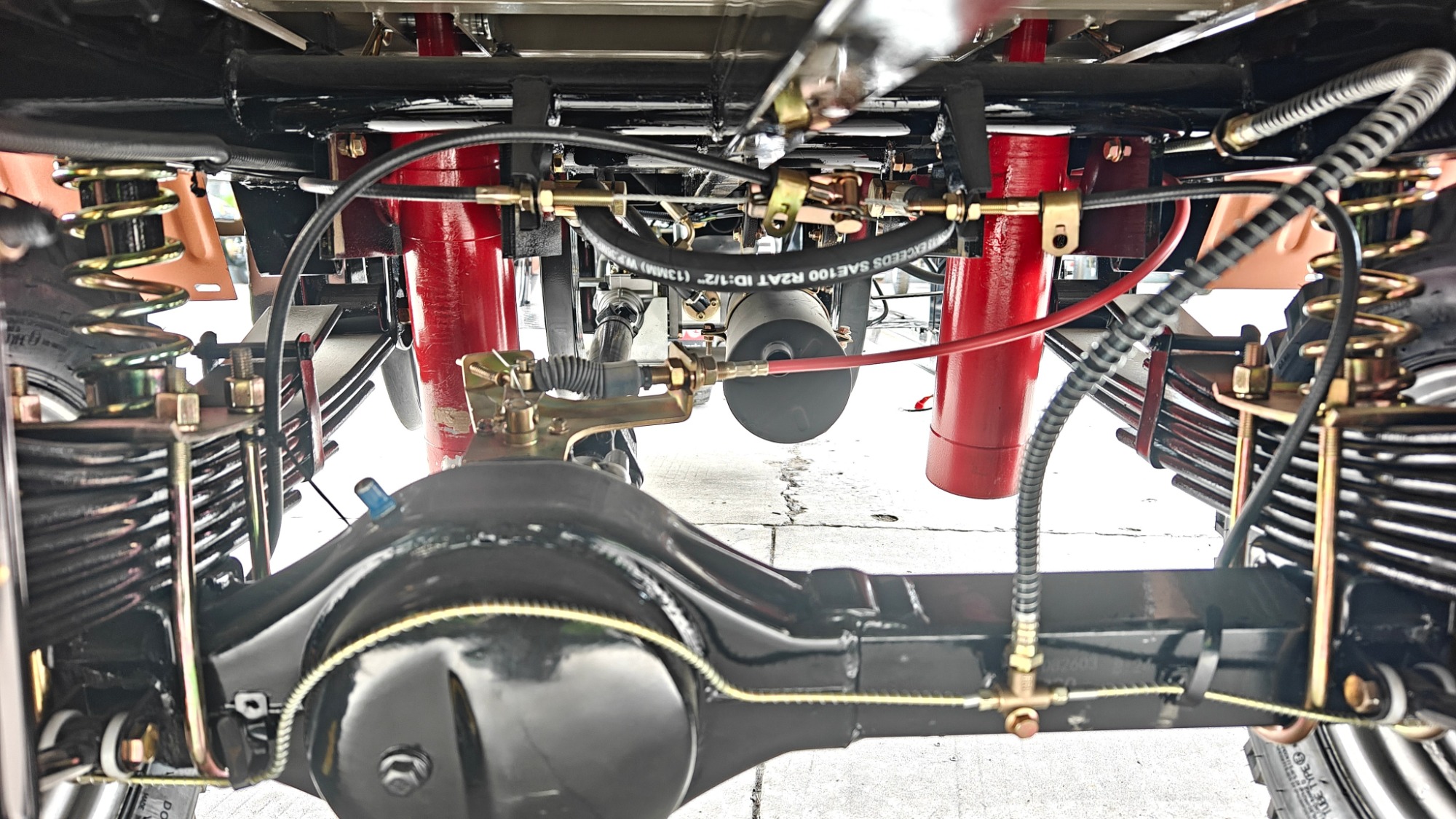

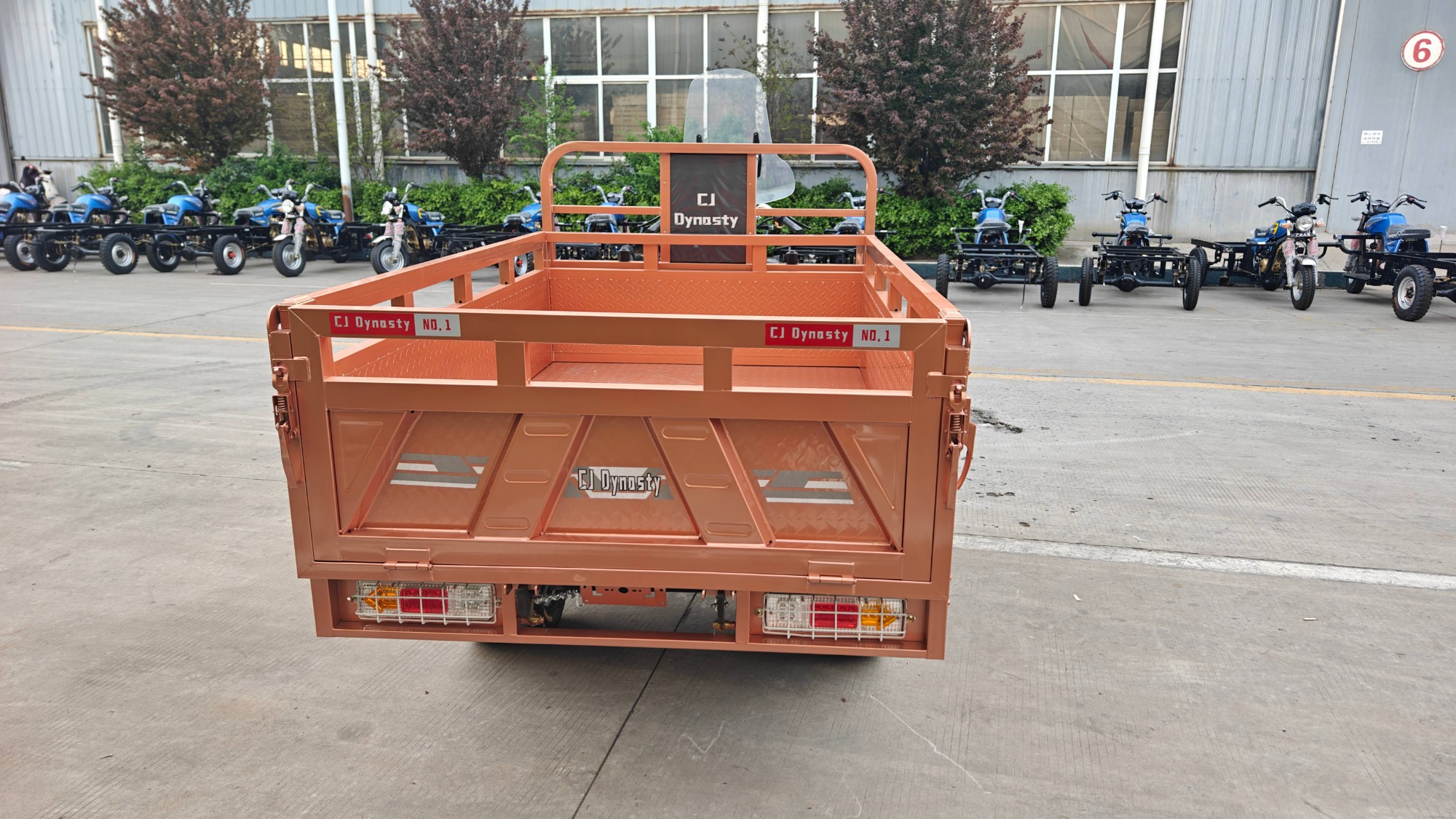

Detailed photos:

Parameters:
parameter status
Specification Description

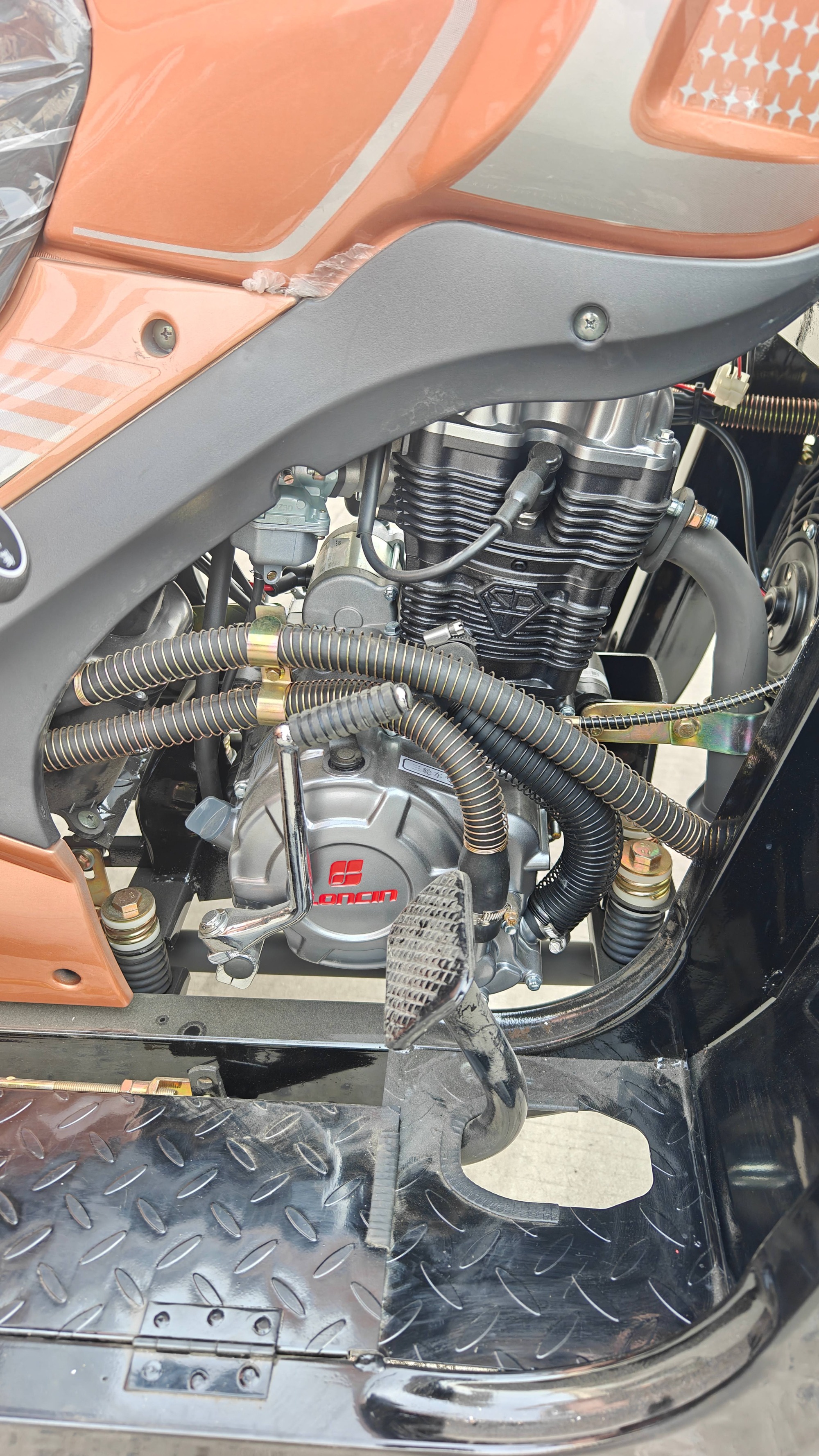

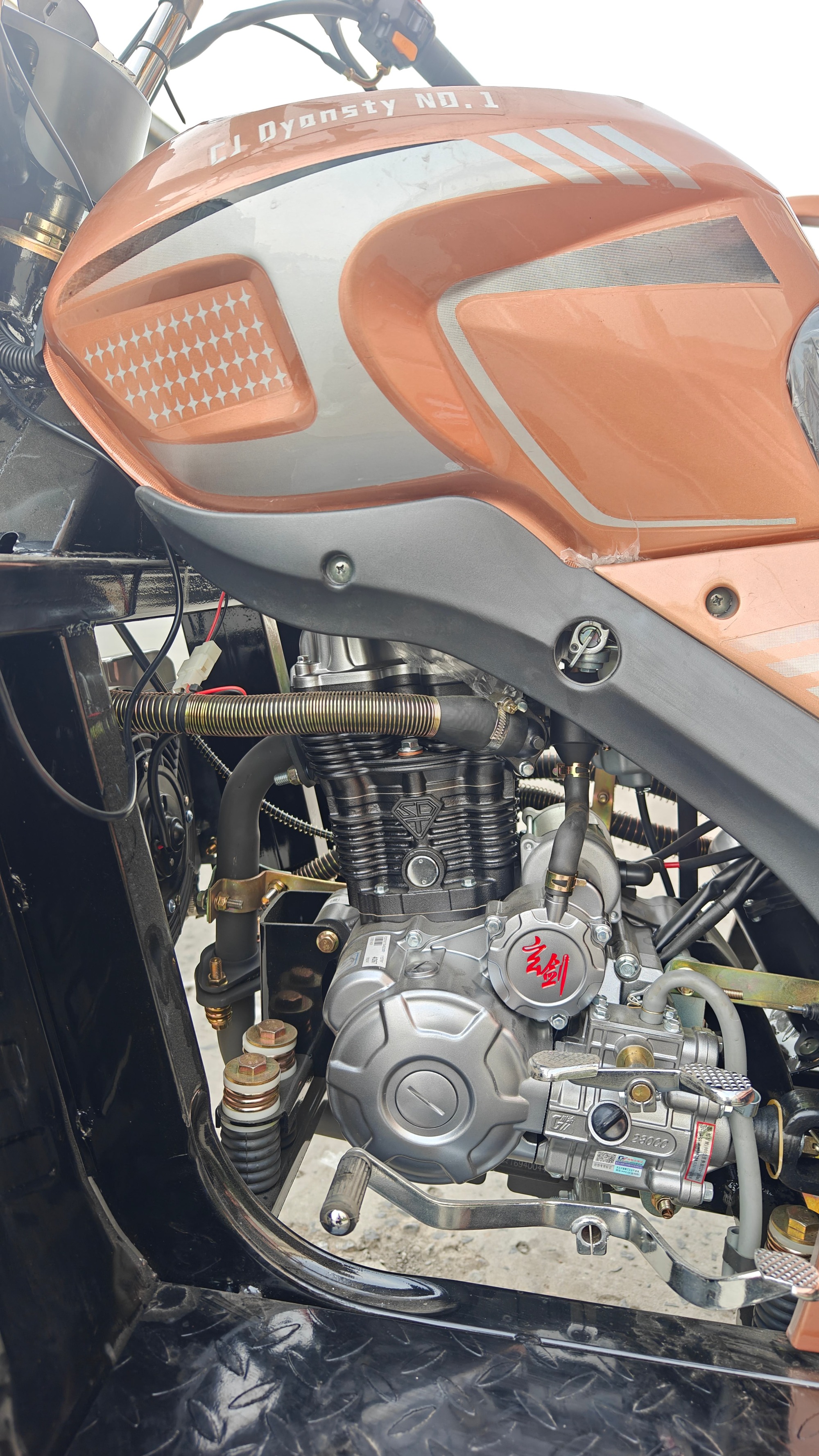

Engine Model
single cylinder four stroke
Start Method
Electric start,/foot start
Cooling Method
Water Cooling
Engine Shift Mode
5-digit international file
Magneto Model
12v/18 class
Engine displacement
350ml
Max Power (kw/rpm)
14 kW/6000 r/min
Max Torque (N.m/rpm)
25.5 N·m/4500 r/min
Vehicle size(mm)
L4120*W1450*H1580(mm)

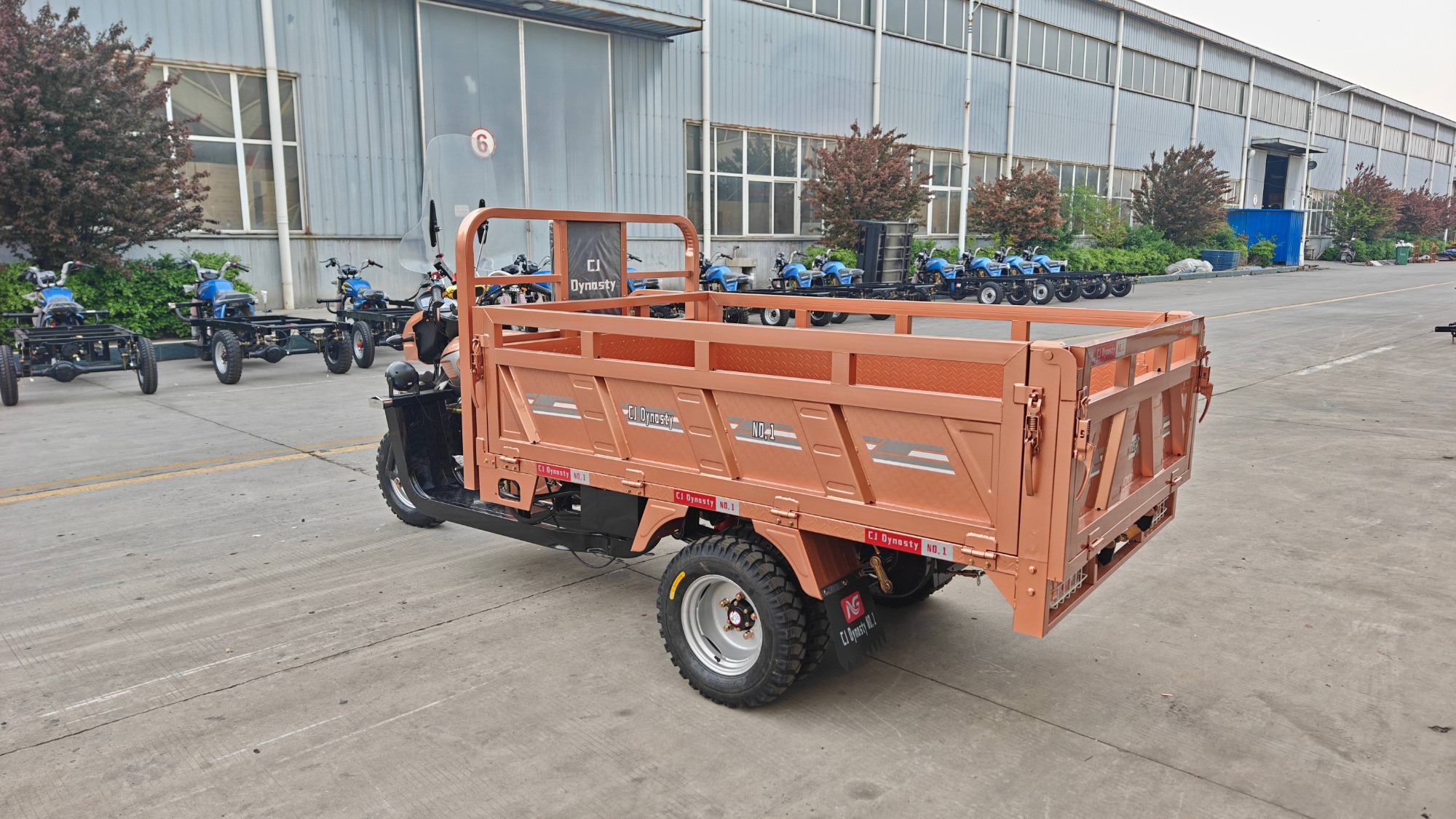

Cargo size(mm)
L2200*W1400*H560(mm)
Wheelbase(mm)
2680
Rear Wheel Track(mm)
1260
Maximum speed
55Km/h
Vehicle weight(KG):
680KG
Maximum load capacity:
3000KG
Frame
40*80 keel double bone (thickness 3.0mm), 40*80 rear flat frame (thickness 2.5mm)

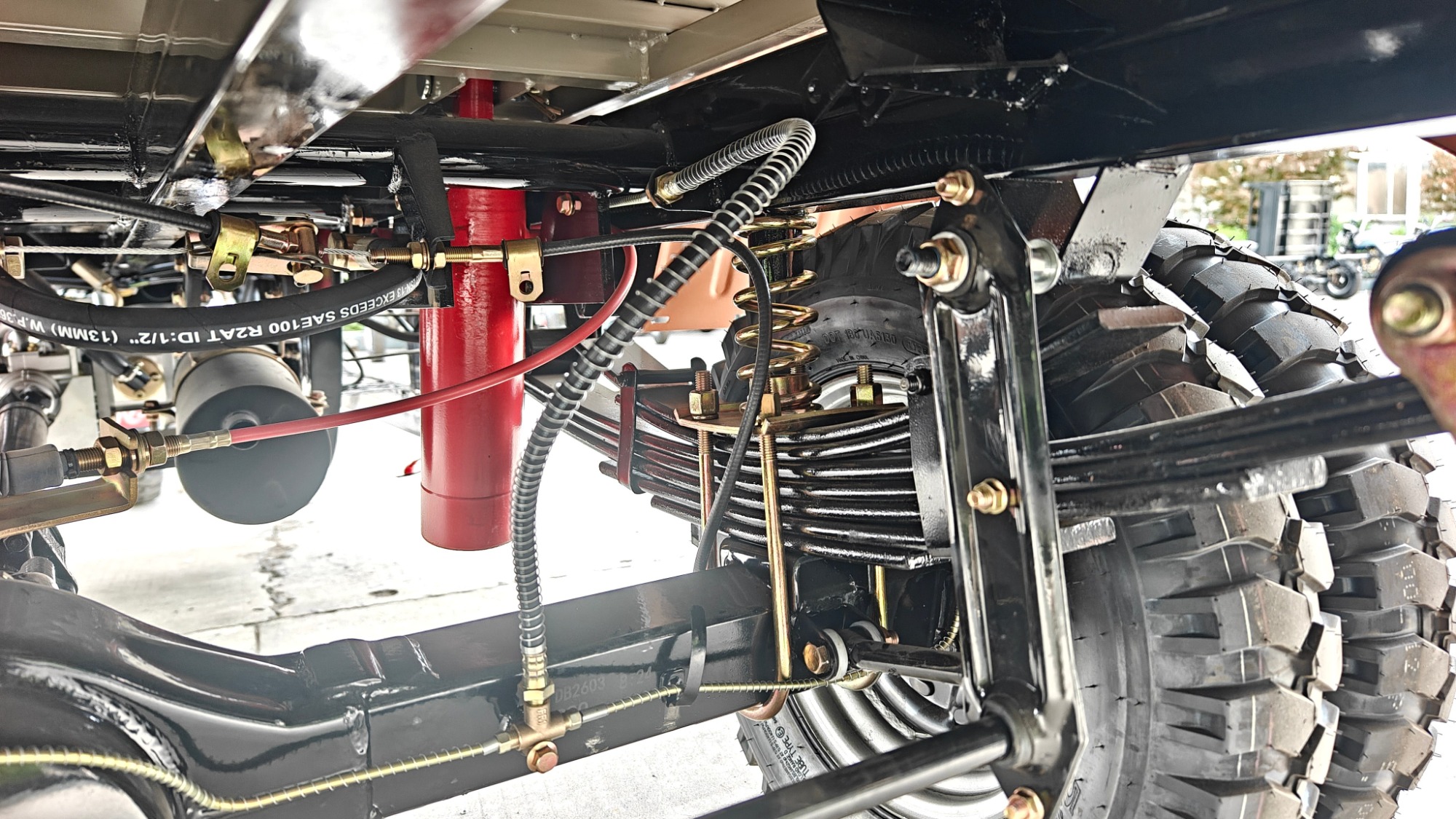

Leaf Spring
5+4/60*12(mm), 22KG/rack
Front Shock
Hydraulic single-arm four-spring shock absorber
Rear axle
"Dongba" External Suspension Afterburner King 63mm*70mm Square Tube Oil Brake Rear Axle, 220mm Brake Pot, Speed Ratio 9:23

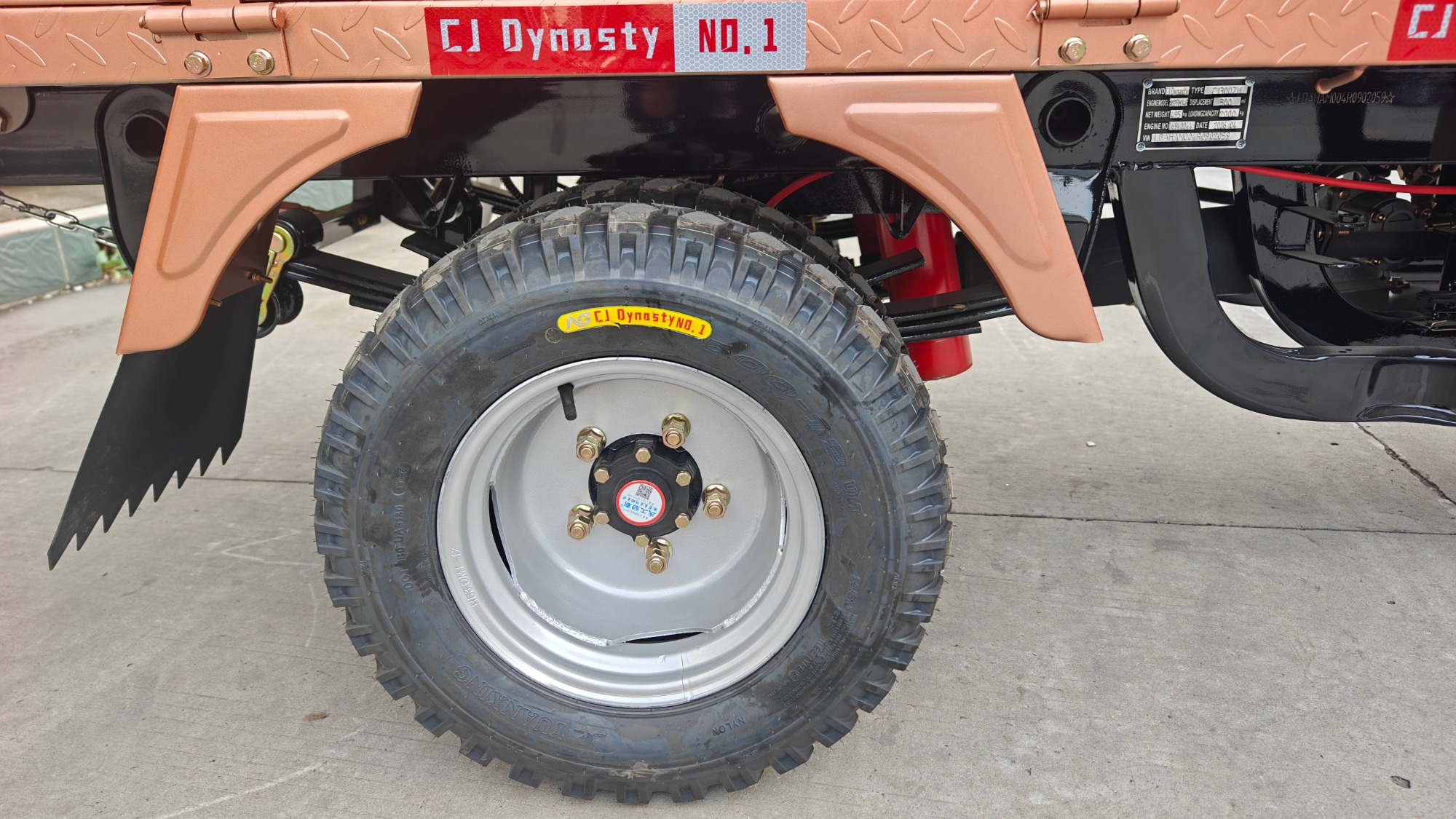

Tire Model
Front 5.00-12, dual rear 5.00-12
Hydraulic dump system
Dual-cylinder hydraulic self-unloading type (Dingli MAX750, 5-ton dual-cylinder hydraulic)
Drive mode
Shaft drive
Braking method
Oil brake/brake hub
Baattery
12V/32Ah maintenance-free lead-acid battery
Can Choose Colour
red, blue, black, white, yellow, green
Container loading quantity
30 units in CKD in 40HQ
Company information:

Henan Niegui Import and Export Trade Co., Ltd. is located in Luoyang city, Henan Province, which is the"Ancient Capital of China"."the Peony city in China", "the origin of Chinese Civilization &Culture" .It is near the"WORLD CULTURAL HERITAGE"--the Longmen Grottoes and the ShaolinTemple,20 minutes by car from Luoyang Airport, and 90 minutes by car from Zhengzhou Airport.

The company is mainly engaged in production and sales: motorcycles, side tricycles, electric vehicles, electric cargo tricycles, mopeds, motorcycle parts, engines, etc. The company produced more than 120,000 vehicles,Its brand"NIEGUI"is very famous in China and has nearly 60 years history until now .The total investment is 600 million yuan and the building area is 90,000 square meters. With a total number of 450 people, the company has three standardized workshops, modern business office buildings, staff restaurants, and apartment buildings.The company has two modern assembly production lines, a coating production line, an electrophoresis production line, a surface treatment line, a carriage molding production line and other large-scale complete production facilities and equipment. Robot welding technology is adopted for the frame and carriage. Possess advanced inspection and testing equipment: three-coordinate measuring instrument, leaf spring test bench, front shock absorption test bench, electrical test bench, tire comprehensive test bench, two vehicle inspection lines, ensuring the consistency of the factory products and all the factory products In line with national standards.

The company has always adhered to "quality first, customer first" for many years, established an extensive sales network, and its products are sold all over the world. The company focuses on quality and keeps promises, and ranks among the best in the same industry in the country. Continuously improve the level of enterprise management, has passed ISO9001: 2008 international quality management system certification, 3C certification, passed the Ministry of Industry and Information Technology production access assessment announcement, obtained production qualifications and followed IS09001 management standards, all products have "CCC" certificates, some products have " EEC" certificate, now exported to the European market. Products are exported to Egypt, Myanmar, Nepal, Cambodia, Russia, France, Italy, Australia, Britain, South America, Africa, Central Asia and other countries and regions.

Welcome the friend all over the world come to visit us and cooperation!
